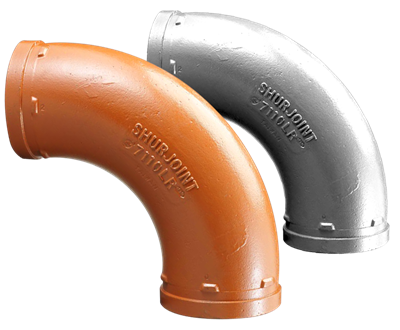

VSH Shurjoint 1.5D 90° elbow (2 x groove)

VSH Shurjoint 1.5D 90° elbow (2 x groove)

group: 7110LR

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

show all
show less

solutions

building installations

building installations

fire protection

fire protection

industry

industry

show all
show less

approvals

FM

FM

UL

UL

ULc

ULc

show all
show less
assortment
code size weight dimensions packaging gtin
1110L0020001 60.3 (DN50) orange 1.1 kg 60x141x141 mm
1110L0020003 60.3 (DN50) galvanized 1.1 kg 60x141x141 mm
1110L0025001 73 (DN65) orange 1.8 kg 73x164x164 mm
1110L0025003 73 (DN65) galvanized 1.8 kg 73x164x164 mm
1110L0029001 76.1 (DN65) orange 1.8 kg 76x165x165 mm
1110L0029003 76.1 (DN65) galvanized 1.8 kg 76x165x165 mm
1110L0030001 88.9 (DN80) orange 2.63 kg 89x193x193 mm
1110L0030003 88.9 (DN80) galvanized 2.63 kg 89x193x193 mm
1110L0045001 114.3 (DN100) orange 4.7 kg 114x248x248 mm
1110L0045003 114.3 (DN100) galvanized 4.7 kg 115x249x249 mm 08711985478723
1110L0052001 139.7 (DN125) orange 8.21 kg 140x311x311 mm
1110L0052003 139.7 (DN125) galvanized 8.21 kg 140x311x311 mm
1110L0055001 141.3 (DN125) orange 8.21 kg 141x312x312 mm
1110L0055003 141.3 (DN125) galvanized 8.21 kg 141x312x312 mm
1110L0062001 165.1 (DN150) orange 11.5 kg 165x356x356 mm
1110L0062003 165.1 (DN150) galvanized 11.5 kg 165x356x356 mm
1110L0065001 168.3 (DN150) orange 11.5 kg 168x357x357 mm
1110L0065003 168.3 (DN150) galvanized 11.5 kg 168x357x357 mm
1110L0085001 219.1 (DN200) orange 23 kg 219x472x472 mm
1110L0085003 219.1 (DN200) galvanized 23 kg 219x472x472 mm
1110L00A1001 273 (DN250) orange 42.2 kg 273x575x575 mm
1110L00A1003 273 (DN250) galvanized 42.2 kg 273x575x575 mm
1110L00A3001 323.9 (DN300) orange 63 kg 324x683x683 mm
1110L00A3003 323.9 (DN300) galvanized 63 kg 324x683x683 mm
dimensions
art. No size d1 DN1 l1 z1 es1 d2 DN2 l2 z2 es2 angle
1110L0020001 60.3 (DN50) orange 60.3 DN50 111 111 25 60.3 DN50 111 111 25 90
1110L0020003 60.3 (DN50) galvanized 60.3 DN50 111 111 25 60.3 DN50 111 111 25 90
1110L0025001 73 (DN65) orange 73.0 DN65 127 127 25 73.0 DN65 127 127 25 90
1110L0025003 73 (DN65) galvanized 73.0 DN65 127 127 25 73.0 DN65 127 127 25 90
1110L0029001 76.1 (DN65) orange 76.1 DN65 127 127 25 76.1 DN65 127 127 25 90
1110L0029003 76.1 (DN65) galvanized 76.1 DN65 127 127 25 76.1 DN65 127 127 25 90
1110L0030001 88.9 (DN80) orange 88.9 DN80 149 149 25 88.9 DN80 149 149 25 90
1110L0030003 88.9 (DN80) galvanized 88.9 DN80 149 149 25 88.9 DN80 149 149 25 90
1110L0045001 114.3 (DN100) orange 114.3 DN100 191 191 25 114.3 DN100 191 191 25 90
1110L0045003 114.3 (DN100) galvanized 114.3 DN100 191 191 25 114.3 DN100 191 191 25 90
1110L0052001 139.7 (DN125) orange 139.7 DN125 241 241 25 139.7 DN125 241 241 25 90
1110L0052003 139.7 (DN125) galvanized 139.7 DN125 241 241 25 139.7 DN125 241 241 25 90
1110L0055001 141.3 (DN125) orange 141.3 DN125 241 241 25 141.3 DN125 241 241 25 90
1110L0055003 141.3 (DN125) galvanized 141.3 DN125 241 241 25 141.3 DN125 241 241 25 90
1110L0062001 165.1 (DN150) orange 165.1 DN150 273 273 25 165.1 DN150 273 273 25 90
1110L0062003 165.1 (DN150) galvanized 165.1 DN150 273 273 25 165.1 DN150 273 273 25 90
1110L0065001 168.3 (DN150) orange 168.3 DN150 273 273 25 168.3 DN150 273 273 25 90
1110L0065003 168.3 (DN150) galvanized 168.3 DN150 273 273 25 168.3 DN150 273 273 25 90
1110L0085001 219.1 (DN200) orange 219.1 DN200 362 362 31 219.1 DN200 362 362 31 90
1110L0085003 219.1 (DN200) galvanized 219.1 DN200 362 362 31 219.1 DN200 362 362 31 90
1110L00A1001 273 (DN250) orange 273.0 DN250 438 438 31 273.0 DN250 438 438 31 90
1110L00A1003 273 (DN250) galvanized 273.0 DN250 438 438 31 273.0 DN250 438 438 31 90
1110L00A3001 323.9 (DN300) orange 323.9 DN300 521 521 31 323.9 DN300 521 521 31 90
1110L00A3003 323.9 (DN300) galvanized 323.9 DN300 521 521 31 323.9 DN300 521 521 31 90
drawing for product
characteristics

characteristics

color silver, red, orange
materials cast iron (ASTM A536 65-45-12)
finishing galvanised, varnished
manufacturer Shurjoint
shape Elbow (90º)
connection type groove (fitting)
general

general

product group fittings
ETIM class EC003024 Fitting with 2 connections
country of origin Taiwan
brand VSH
series Shurjoint
type 7110LR
downloads
ETIM
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Cast iron
Material connection 2 Cast iron
Shape Bend
Bend angle 90°
Reducing No
Eccentric No
System specific No
Connection 1 Groove
Connection 2 Groove
With buffer stud No
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
LPCB quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
Gastec QA - AR 214 (H2) No
