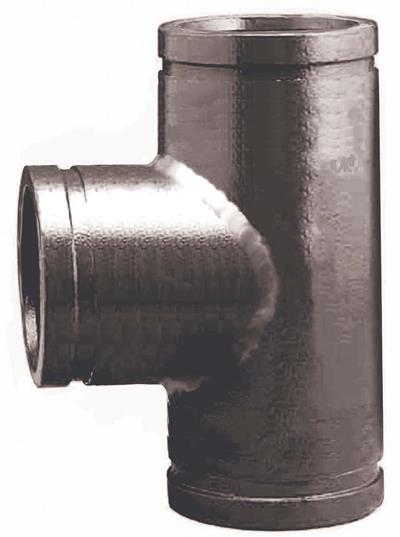

VSH Shurjoint end protection tee

group: 20EP

VSH Shurjoint offers a variety of fittings with extra heavy (Sch. 80) wall thickness and "EP" cut grooves available for use with XH-70EP couplings. These fittings must be used with XH-70EP in high pressure systems where the system pressure exceeds the published ratings for XH-1000 or Model 7707 couplings.
read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

item

size

d1

DN1

l1

d2

DN2

l2

d3

DN3

l3

size

60.3 (DN50) black

d1

60.3

DN1

DN50

l1

83

d2

60.3

DN2

DN50

l2

83

d3

60.3

DN3

DN50

l3

83

technical drawing for product

characteristics

color

black

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished

manufacturer

Shurjoint

shape

T-piece

connection type

groove (fitting)

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

20EP

label

value

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Surface protection connection 1

value

Lacquered

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Surface protection connection 2

value

Lacquered

label

Material connection 3

value

Cast iron

label

Material quality connection 3

value

ASTM A536 Grade 65-45-12

label

Surface protection connection 3

value

Lacquered

label

Model

value

T-piece

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

Yes

label

Nominal diameter connection 1

value

DN 50

label

Outer pipe diameter connection 1

value

60.3mm

label

Outer pipe diameter connection 1 (imperial)

value

2.37"

label

Connection 1

value

Groove

label

Nominal diameter connection 2

value

DN 50

label

Outer pipe diameter connection 2

value

60.3mm

label

Outer pipe diameter connection 2 (imperial)

value

2.37"

label

Connection 2

value

Groove

label

Nominal diameter connection 3

value

DN 50

label

Outer pipe diameter connection 3

value

60.3mm

label

Outer pipe diameter connection 3 (imperial)

value

2.37"

label

Connection 3

value

Groove

label

Main colour fitting

value

Black

label

Length of connection 1

value

83mm

label

Length of connection 1 (imperial)

value

3.27"

label

Length of connection 2

value

83mm

label

Length of connection 2 (imperial)

value

3.27"

label

Length of connection 3

value

83mm

label

Length of connection 3 (imperial)

value

3.27"

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
