group: 7160C
item: 1160C6220002
VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
heating
cooling
compressed air
dry fire main
building installations
industry
ULc
| color | red |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| shape | straight, reducer (0º) |
| connection type | groove (fitting), Rp - female thread cylindrical (BSPT) |

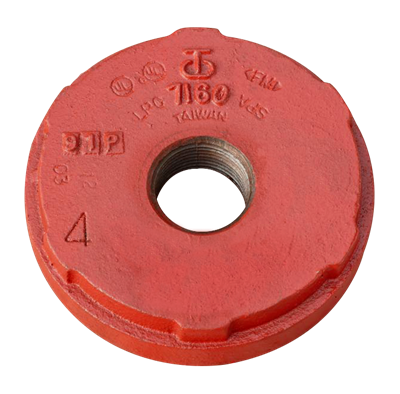

| item | VSH Shurjoint concentric transition cap MF 165.1xRp2" red |
|---|---|
| item number with GTIN | 1160C6220002 (08711985479263) |
| product number with GTIN | 1160C6220002 (08711985479263) |
| item group | 7160C - VSH Shurjoint concentric transition cap (groove x female thread) |
| size | 165.1 (DN150) xRp2 red |
| weight | 2.28 kg |
| dimensions | 165x165x39 mm |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| intrastat code | 73071910 |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 7160C |
| unsps | 40172404 |
| max operating pressure liquid | 69 bar |
|---|
| label | value |
|---|---|
| d1 | 165.1 |
| DN1 | DN150 |
| l1 | 25 |
| d2 | 60.3 |
| DN2 | DN50 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Straight |
| Model | 1-part |
| Bend angle | 0° |
| Reducing | Yes |
| Eccentric | No |
| System specific | No |
| Nominal diameter connection 1 | DN 150 |
| Outer pipe diameter connection 1 | 165.1mm |
| Outer pipe diameter connection 1 (imperial) | 6.5" |
| Connection 1 | Groove |
| Nominal diameter connection 2 | DN 50 |
| Outer pipe diameter connection 2 | 60.3mm |
| Outer pipe diameter connection 2 (imperial) | 2.37" |
| Connection 2 | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| With buffer stud | No |
| High tensile strength | Yes |
| Length | 165mm |
| Length of connection 1 | 25.4mm |
| Length of connection 1 (imperial) | 1" |
| Max. operating pressure at 20 °C | 69bar |
| Max. operating pressure at 20 °C (imperial) | 1000.76psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | Yes |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
