1150M3020003
type 7150M

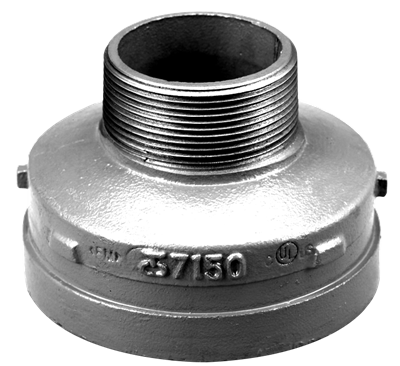

The Shurjoint Models 7150F & 7150M are designed for making direct reduction from a grooved system to female or male threaded system without the need for expensive swaged nipples.
applications
solutions
approvals
| color | silver |
|---|---|
| materials | ductile iron (ASTM A536 65-45-12) |
| finishing | galvanised |
| manufacturer | Shurjoint |
| shape | reducer (0º) |
| connection type | groove (fitting), MPT - male thread conical (NPT) |
| item | VSH Shurjoint concentric transition fitting MM 88.9xMNPT2 galvanized |
|---|---|
| item number | 1150M3020003 |
| product number with GTIN | 1150M3020003 (00670750300264) |
| item group | 7150M - VSH Shurjoint reducing nipple (groove x male thread) |
| size | 88.9xMNPT2 galvanized |
| weight | 0.6 kg |
| dimensions | 89x89x64 mm |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| intrastat code | 73071910 |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 7150M |
| max operating pressure liquid | 69 bar |
|---|
| label | value |
|---|---|
| d1 | 88.9 |
| DN1 | DN80 |
| l1 | 32 |
| z1 | 32 |
| d2 | 60.3 |
| DN2 | DN50 |
| l2 | 32 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Galvanic/electrolytic zinc plated |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Galvanic/electrolytic zinc plated |
| Shape | Straight |
| Bend angle | 0° |
| Reducing | Yes |
| Eccentric | No |
| System-specific | No |
| Nominal diameter connection 1 | DN 80 |
| Outer pipe diameter connection 1 | 88.9mm |
| Outer pipe diameter connection 1 (imperial) | 3.5" |
| Connection 1 | Groove |
| Nominal diameter connection 2 | DN 50 |
| Outer pipe diameter connection 2 | 60.3mm |
| Outer pipe diameter connection 2 (imperial) | 2.37" |
| Connection 2 | External thread conical (NPT) |
| Main colour fitting | Grey |
| With buffer stud | No |
| High tensile strength | Yes |
| Length | 88.9mm |
| Length of connection 1 | 32mm |
| Length of connection 1 (imperial) | 1.26" |
| Working length connection 1 | 32mm |
| Working length connection 1 (imperial) | 1.26" |
| Length of connection 2 | 32mm |
| Length of connection 2 (imperial) | 1.26" |
| Max. operating pressure at 20 °C | 69bar |
| Max. operating pressure at 20 °C (imperial) | 1000.76psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | Yes |
| LPCB quality mark | No |
| ULC quality mark | Yes |
| UL quality mark | Yes |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
