group: 7121F
item: 1121F6520013

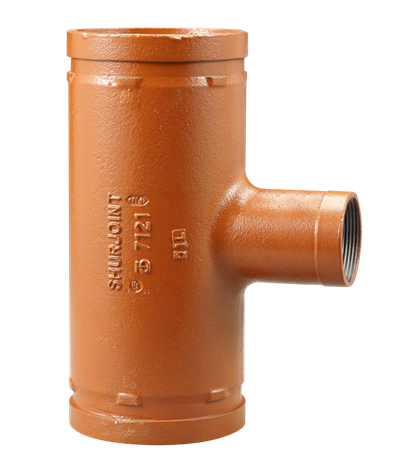

Shurjoint grooved-end reducing tees are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.
Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
heating
cooling
compressed air
building installations
industry
no approvals available
| color | orange |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| shape | T-piece (90º) |
| connection type | groove (fitting), Rc - female thread gas conical (BSPT) |
| item | VSH Shurjoint tee female threaded MFM 168.3x168.3xRc2 orange |
|---|---|
| item number | 1121F6520013 |
| product number with GTIN | 1121F6520013 (04710574013660) |
| item group | 7121F - VSH Shurjoint reducing tee (groove x female thread x groove) |
| size | 168.3x168.3xRc2 orange |
| weight | 9.26 kg |
| dimensions | 330x168x249 mm |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003025 Fitting with 3 connections |
| intrastat code | 73071910 |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 7121F |

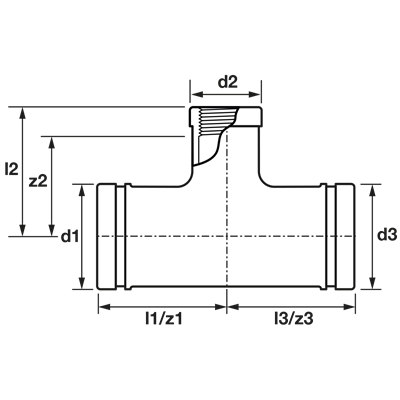

| label | value |
|---|---|
| d1 | 168.3 |
| DN1 | DN150 |
| l1 | 165 |
| z1 | 165 |
| d2 | 60.3 |
| DN2 | DN50 |
| l2 | 165 |
| z2 | 145 |
| d3 | 168.3 |
| DN3 | DN150 |
| l3 | 165 |
| z3 | 165 |
| label | value |
|---|---|
| ETIM class | EC003025 Fitting with 3 connections |
| Material connection 1 | Cast iron |
| Material quality connection 1 | ASTM A536 Grade 65-45-12 |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Material quality connection 2 | ASTM A536 Grade 65-45-12 |
| Surface protection connection 2 | Lacquered |
| Material connection 3 | Cast iron |
| Material quality connection 3 | ASTM A536 Grade 65-45-12 |
| Surface protection connection 3 | Lacquered |
| Model | T-piece |
| Angle | 90° |
| Reducing | No |
| Multi-part | No |
| System specific | No |
| Nominal diameter connection 1 | DN 150 |
| Outer pipe diameter connection 1 | 168.3mm |
| Outer pipe diameter connection 1 (imperial) | 6.63" |
| Connection 1 | Groove |
| Nominal diameter connection 2 | DN 50 |
| Outer pipe diameter connection 2 | 60.3mm |
| Outer pipe diameter connection 2 (imperial) | 2.37" |
| Connection 2 | Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1) |
| Nominal diameter connection 3 | DN 150 |
| Outer pipe diameter connection 3 | 168.3mm |
| Outer pipe diameter connection 3 (imperial) | 6.63" |
| Connection 3 | Groove |
| Main colour fitting | Orange |
| Length of connection 1 | 165mm |
| Length of connection 1 (imperial) | 6.5" |
| Working length connection 1 | 165mm |
| Working length connection 1 (imperial) | 6.5" |
| High tensile strength | Yes |
| Length of connection 2 | 165mm |
| Length of connection 2 (imperial) | 6.5" |
| Working length connection 2 | 145mm |
| Working length connection 2 (imperial) | 5.71" |
| Length of connection 3 | 165mm |
| Length of connection 3 (imperial) | 6.5" |
| Working length connection 3 | 165mm |
| Working length connection 3 (imperial) | 6.5" |
| With sealing rings/gaskets | No |
| With drain valve | No |
| With de-aerator | No |
| With buffer stud | No |
| Capped | No |
| With connection indicator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
