group: 7111LR
item: 1111L0030003
Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.
Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
no applications available
no segments available
CRN
color
silver
materials
cast iron (ASTM A536 65-45-12)
finishing
galvanised
manufacturer
Shurjoint
shape
Elbow
connection type
groove (fitting)
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
country of origin
Taiwan
brand
VSH
series
Shurjoint
type
7111LR
item

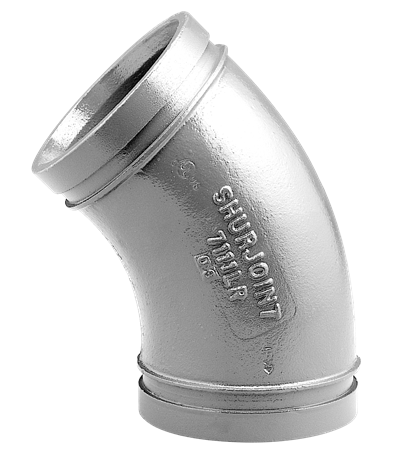

VSH Shurjoint 1.5D 45° elbow MM 88.9 galvanized
item number
1111L0030003
product number with GTIN
1111L0030003 (00670750128264)
item group
7111LR - VSH Shurjoint 1.5D 45° elbow (2 x groove)
size
88.9 (DN80) galvanized
weight
1.8 kg
dimensions
89x178x137 mm

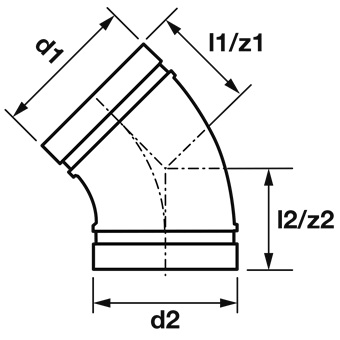

label
value
label
d1
value
88.9
label
DN1
value
DN80
label
l1
value
86
label
d2
value
88.9
label
DN2
value
DN80
label
l2
value
86
label
value
label
ETIM class
label
Material connection 1
value
Cast iron
label
Surface protection connection 1
value
Galvanic/electrolytic zinc plated
label
Material connection 2
value
Cast iron
label
Surface protection connection 2
value
Galvanic/electrolytic zinc plated
label
Shape
value
Bend
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Nominal diameter connection 1
value
DN 80
label
Outer pipe diameter connection 1
value
88.9mm
label
Outer pipe diameter connection 1 (imperial)
value
3.5"
label
Connection 1
value
Groove
label
Nominal diameter connection 2
value
DN 80
label
Outer pipe diameter connection 2
value
88.9mm
label
Outer pipe diameter connection 2 (imperial)
value
3.5"
label
Connection 2
value
Groove
label
Main colour fitting
value
Grey
label
With buffer stud
value
No
label
Length
value
88.9mm
label
Length of connection 1
value
86mm
label
Length of connection 1 (imperial)
value
3.39"
label
Length of connection 2
value
86mm
label
Length of connection 2 (imperial)
value
3.39"
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
