group: Z05T
item: 10Z050030016

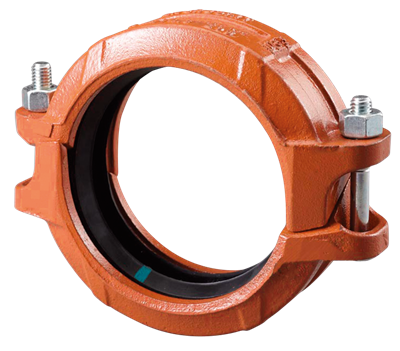

Z05T is the designation for model Z05 with a Grade T NBR gasket. The VSH Shurjoint Model Z05 is an angle-pad design rigid coupling for moderate pressure piping services including fire mains, long straight runs and valve connections. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint which resists so called ‘snaking’ of a long straight run. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13. With the removal of only one bolt you can make a fast and easy "swing-over” installation.
heating
cooling
compressed air
vacuum
commercial building
industry
no approvals available
color
orange
materials
cast iron (ASTM A536 65-45-12)
finishing
varnished
manufacturer
Shurjoint
shape
straight (0º)
connection type
groove (coupling)
sealing
NBR (Nitrile)
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
country of origin
Taiwan
brand
VSH
series
Shurjoint
type
Z05T
item
VSH Shurjoint rigid coupling FF 88.9 orange UNC
item number
10Z050030016
product number with GTIN
10Z050030016 (04710574010423)
item group
Z05T - VSH Shurjoint rigid coupling (2 x groove), NBR gasket
size
88.9 (DN80) orange UNC
weight
1.2 kg
dimensions
48x150x113 mm
max operating pressure liquid
35 bar
min. medium temperature
-29 °C
max medium temperature
82 °C
label
value
label
d1
value
88.9
label
DN1
value
DN80
label
l1
value
24
label
z1
value
1
label
d2
value
88.9
label
DN2
value
DN80
label
l2
value
24
label
z2
value
1
label
value
label
ETIM class
label
Material connection 1
value
Cast iron
label
Surface protection connection 1
value
Lacquered
label
Material connection 2
value
Cast iron
label
Surface protection connection 2
value
Lacquered
label
Shape
value
Straight
label
Model
value
2-part
label
Bend angle
value
0°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Nominal diameter connection 1
value
DN 80
label
Outer pipe diameter connection 1
value
88.9mm
label
Outer pipe diameter connection 1 (imperial)
value
3.5"
label
Connection 1
value
Ribbing groove (groove coupling)
label
Nominal diameter connection 2
value
DN 80
label
Outer pipe diameter connection 2
value
88.9mm
label
Outer pipe diameter connection 2 (imperial)
value
3.5"
label
Connection 2
value
Ribbing groove (groove coupling)
label
Main colour fitting
value
Orange
label
Material sealing
value
NBR (nitrile rubber)
label
With buffer stud
value
No
label
Length
value
48mm
label
Length of connection 1
value
24mm
label
Length of connection 1 (imperial)
value
0.94"
label
Working length connection 1
value
0.85mm
label
Working length connection 1 (imperial)
value
0.03"
label
Length of connection 2
value
24mm
label
Length of connection 2 (imperial)
value
0.94"
label
Working length connection 2
value
0.85mm
label
Working length connection 2 (imperial)
value
0.03"
label
Medium temperature (continuous)
value
-29°C - 82°C
label
Medium temperature (continuous) (imperial)
value
-20.2°F - 179.6°F
label
Max. operating pressure at 20 °C
value
35bar
label
Max. operating pressure at 20 °C (imperial)
value
507.63psi
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
