group: M07EHM
item: 10M070020009

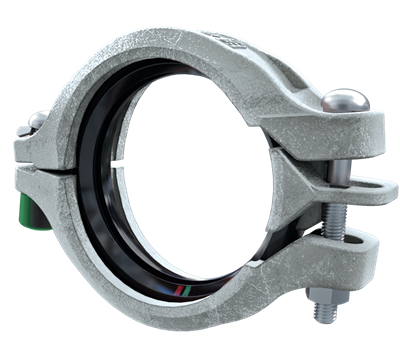

The VSH Shurjoint Model M07 is a ready to install rigid coupling for general piping applications where rigidity is required. The M07 includes two identical housing segments and a fully constrained wedge. Proper installation requires the tightening of only one bolt/nut. As this bolt/nut is tightened, the wedge applies uniform compression to the gasket. The hinge bolt/nut is factory pre-set and requires no adjustment.
heating
cooling
compressed air
vacuum
building installations
industry
CRN
NSF
| color | silver |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | galvanised |
| manufacturer | Shurjoint |
| shape | straight (0º) |
| connection type | groove (coupling) |
| sealing | EPDM |
| item | VSH Shurjoint quick install rigid coupling FF 60.3 galvanized UNC |
|---|---|
| item number | 10M070020009 |
| product number with GTIN | 10M070020009 (04710574060480) |
| item group | M07EHM - VSH Shurjoint quick install rigid coupling (2 x groove), EHM gasket |
| size | 60.3 (DN50) galvanized UNC |
| weight | 1.3 kg |
| dimensions | 48x142x85 mm |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | M07EHM |
| max operating pressure liquid | 52 bar |
|---|---|
| min. medium temperature | -34 °C |
| max medium temperature | 121 °C |
| label | value |
|---|---|
| d1 | 60.3 |
| DN1 | DN50 |
| l1 | 24 |
| z1 | 2 |
| d2 | 60.3 |
| DN2 | DN50 |
| l2 | 24 |
| z2 | 2 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Galvanic/electrolytic zinc plated |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Galvanic/electrolytic zinc plated |
| Shape | Straight |
| Model | 2-part |
| Bend angle | 0° |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Nominal diameter connection 1 | DN 50 |
| Outer pipe diameter connection 1 | 60.3mm |
| Outer pipe diameter connection 1 (imperial) | 2.37" |
| Connection 1 | Ribbing groove (groove coupling) |
| Nominal diameter connection 2 | DN 50 |
| Outer pipe diameter connection 2 | 60.3mm |
| Outer pipe diameter connection 2 (imperial) | 2.37" |
| Connection 2 | Ribbing groove (groove coupling) |
| Main colour fitting | Grey |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | No |
| Length | 48mm |
| Length of connection 1 | 24mm |
| Length of connection 1 (imperial) | 0.94" |
| Working length connection 1 | 1.6mm |
| Working length connection 1 (imperial) | 0.06" |
| Length of connection 2 | 24mm |
| Length of connection 2 (imperial) | 0.94" |
| Working length connection 2 | 1.6mm |
| Working length connection 2 (imperial) | 0.06" |
| Max. operating pressure at 20 °C | 52bar |
| Max. operating pressure at 20 °C (imperial) | 754.2psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
