VSH Shurjoint Grooved hinged lever coupling FF 273 orange

VSH Shurjoint Grooved hinged lever coupling FF 273 orange

10G2800A1001

type G28E

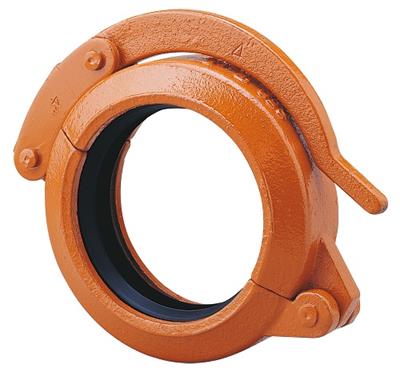

G28E is the designation for model G28 with a Grade E EPDM gasket. The VSH Shurjoint Model G28 Hinged Grooved Coupling is designed for quick connect and disconnect services. The housing segments are hinged with a lever handle for easy assembly. The use of the split pin can secure and prevent the accidental opening of the coupling. The Model G28 can be used in a wide variety of applications with standard rolled or cut grooved pipe. Housings 1½”- 4” (DN40-DN100) feature a smooth outer surface, housings 5” - 10” (DN125–DN250) feature a cross-ribbed design for added strength.

Standard gasket: Grade “E” EPDM or Grade “T” Nitrile. Standard surface finish: Black electro-deposition coated.

applications

heating cooling compressed air vacuum

solutions

building installations industry

characteristics

color orange
materials cast iron (ASTM A536 65-45-12)
finishing varnished
manufacturer Shurjoint
shape straight
connection type groove (coupling)
sealing EPDM

product info

item VSH Shurjoint hinged lever coupling FF 273 orange
item number with GTIN 10G2800A1001 (08711985474572)
product number with GTIN 10G2800A1001 (08711985474572)
item group G28E - VSH Shurjoint hinged lever coupling (2 x groove), EPDM gasket
size 273 (DN250) orange
weight 16.37 kg
dimensions 66x444x322 mm
packaging bag (1 pce)

general

product group fittings
ETIM class EC003024 Fitting with 2 connections
intrastat code 73071910
country of origin Taiwan
brand VSH
series Shurjoint
type G28E

technical

min. medium temperature -34 °C
max medium temperature 110 °C
label value
d1 273.0
DN1 DN250
l1 33
z1 2
d2 273.0
DN2 DN250
l2 33
z2 2
see above for the diagram with these dimensions.
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Cast iron
Surface protection connection 1 Lacquered
Material connection 2 Cast iron
Surface protection connection 2 Lacquered
Shape Straight
Model 1-part
Reducing No
Eccentric No
System-specific No
Nominal diameter connection 1 DN 250
Outer pipe diameter connection 1 273mm
Outer pipe diameter connection 1 (imperial) 10.75"
Connection 1 Ribbing groove (groove coupling)
Nominal diameter connection 2 DN 250
Outer pipe diameter connection 2 273mm
Outer pipe diameter connection 2 (imperial) 10.75"
Connection 2 Ribbing groove (groove coupling)
Main colour fitting Orange
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud No
High tensile strength Yes
Length 66mm
Length of connection 1 33mm
Length of connection 1 (imperial) 1.3"
Working length connection 1 1.6mm
Working length connection 1 (imperial) 0.06"
Length of connection 2 33mm
Length of connection 2 (imperial) 1.3"
Working length connection 2 1.6mm
Working length connection 2 (imperial) 0.06"
Medium temperature (continuous) -34°C - 110°C
Medium temperature (continuous) (imperial) -29.2°F - 230°F
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
