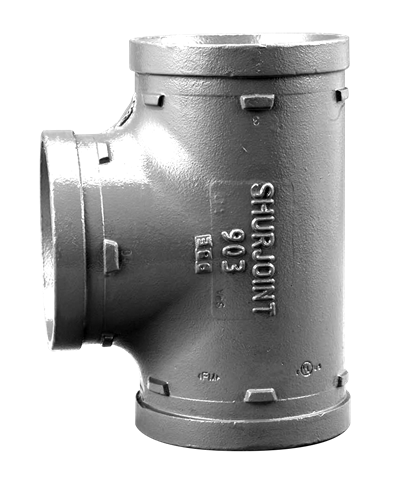

VSH Shurjoint fire tee short radius MMM 219.1 galvanized

VSH Shurjoint fire tee short radius MMM 219.1 galvanized

group: 903

item: 109030085003

Shurjoint short radius fittings, while primarily designed for fire protection applications, can also be used for general service requirements. The Model K-9 and Z05 rigid couplings can be used with short radius fittings without the worry of bolt pad interference.

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

applications

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

approvals

CRN

CRN

FM

FM

LPCB

LPCB

TSU

TSU

UL

UL

ULc

ULc
