108151210005
type 815
VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
approvals
| color | silver |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | galvanised |
| manufacturer | Shurjoint |
| connection type | FPT - female thread conical (NPT) |

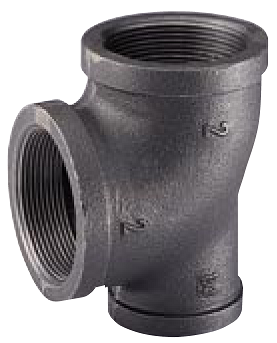

| item | VSH Shurjoint Threaded reducing tee 1 1/4 x 1 1/4 x 1 FNPT galvanized |
|---|---|
| item number | 108151210005 |
| product number | 108151210005 |
| item group | 815 - VSH Shurjoint threaded reducing tee (3 x female thread) |
| size | 1 1/4 x 1 1/4 x 1 FNPT galvanized |
| weight | 0.51 kg |
| dimensions | 32x58x80 mm |
| product group | fittings |
|---|---|
| ETIM class | EC003025 Fitting with 3 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint Threaded |
| type | 815 |
| label | value |
|---|---|
| d1 | 42.2 |
| DN1 | DN32 |
| l1 | 40 |
| d2 | 42.2 |
| DN2 | DN32 |
| l2 | 40 |
| d3 | 33.4 |
| DN3 | DN25 |
| l3 | 42 |
| label | value |
|---|---|
| ETIM class | EC003025 Fitting with 3 connections |
| Material connection 1 | Cast iron |
| Material quality connection 1 | ASTM A536 Grade 65-45-12 |
| Surface protection connection 1 | Galvanic/electrolytic zinc plated |
| Material connection 2 | Cast iron |
| Material quality connection 2 | ASTM A536 Grade 65-45-12 |
| Surface protection connection 2 | Galvanic/electrolytic zinc plated |
| Material connection 3 | Cast iron |
| Material quality connection 3 | ASTM A536 Grade 65-45-12 |
| Surface protection connection 3 | Galvanic/electrolytic zinc plated |
| Model | T-piece |
| Reducing | No |
| Multi-part | No |
| System specific | No |
| Nominal diameter connection 1 | DN 32 |
| Outer pipe diameter connection 1 | 42.2mm |
| Outer pipe diameter connection 1 (imperial) | 1.66" |
| Connection 1 | Internal thread conical (NPT) |
| Nominal diameter connection 2 | DN 32 |
| Outer pipe diameter connection 2 | 42.2mm |
| Outer pipe diameter connection 2 (imperial) | 1.66" |
| Connection 2 | Internal thread conical (NPT) |
| Nominal diameter connection 3 | DN 25 |
| Outer pipe diameter connection 3 | 33.4mm |
| Outer pipe diameter connection 3 (imperial) | 1.31" |
| Connection 3 | Internal thread conical (NPT) |
| Main colour fitting | Grey |
| Length of connection 1 | 40mm |
| Length of connection 1 (imperial) | 1.57" |
| Length of connection 2 | 40mm |
| Length of connection 2 (imperial) | 1.57" |
| Length of connection 3 | 42mm |
| Length of connection 3 (imperial) | 1.65" |
| With sealing rings/gaskets | No |
| With drain valve | No |
| With de-aerator | No |
| With buffer stud | No |
| Capped | No |
| With connection indicator | No |
| FM quality mark | Yes |
| LPCB quality mark | No |
| ULC quality mark | Yes |
| UL quality mark | Yes |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
