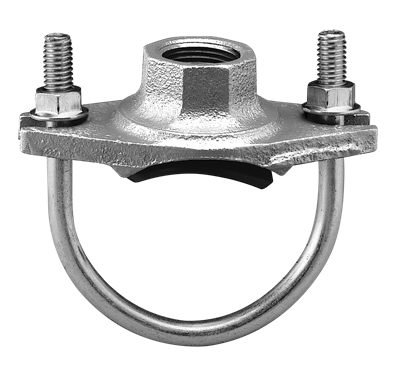

VSH Shurjoint Fire Sprinkler Saddle-let E MF 76.1xRc1/2 galvanized

VSH Shurjoint Fire Sprinkler Saddle-let E MF 76.1xRc1/2 galvanized

107232505V04

type 723

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.

  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from 6 mm to 104 ”
  • Hole saw size 30 mm (max. 32 mm)
  • Free surface area 89 mm

applications

sprinkler dry fire main

solutions

building installations fire protection industry

approvals

FM UL ULc VdS

characteristics

color silver
materials cast iron (ASTM A536 65-45-12)
finishing galvanised
manufacturer Shurjoint
shape Tapping saddle
connection type Rc - female thread gas conical (BSPT), hole
sealing EPDM

product info

item VSH Shurjoint Fire Sprinkler Saddle-let E MF 76.1xRc½ galvanized
item number with GTIN 107232505V04 (08711985441635)
product number with GTIN 107232505V04 (08711985441635)
item group 723 - VSH Shurjoint saddle-let (female thread)
size 76.1xRc½ galvanized
weight 0.38 kg
dimensions 57x97x132 mm

general

product group fittings
ETIM class EC011014 Broaching saddle
country of origin Taiwan
brand VSH
series Shurjoint
type 723

technical

max operating pressure liquid 20 bar
min. medium temperature -34 °C
max medium temperature 110 °C
label value
d1 21.3
DN1 DN15
l1 66
z1 58
d2 30.0
see above for the diagram with these dimensions.
label value
ETIM class EC011014 Broaching saddle
Material Cast iron
Material inlay Ethylene-propylene diene monomer rubber (EPDM)
Surface protection Galvanized
Suitable for pipe diameter DN 65
High tensile strength Yes
Nominal diameter DN 15
Outer pipe diameter 21.3mm
Outer pipe diameter (imperial) 0.84"
Connection Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
Max. operating pressure at 20 °C 20bar
Max. operating pressure at 20 °C (imperial) 290.08psi
Min. medium temperature (continuous) -34°C
Min. medium temperature (continuous) (imperial) -29.2°F
Medium temperature (continuous) -34°C - 110°C
Medium temperature (continuous) (imperial) -29.2°F - 230°F
Max. medium temperature (continuous) 110°C
Max. medium temperature (continuous) (imperial) 230°F
Width 97mm
Length of connection 1 66mm
Length of connection 1 (imperial) 2.6"
Working length connection 1 58mm
Working length connection 1 (imperial) 2.28"
Working length connection 3 38.5mm
Working length connection 3 (imperial) 1.52"
Colour Grey
VdS quality mark Yes
KIWA certified No
Gastec QA mark No
