1041T0085003
type 7041BE

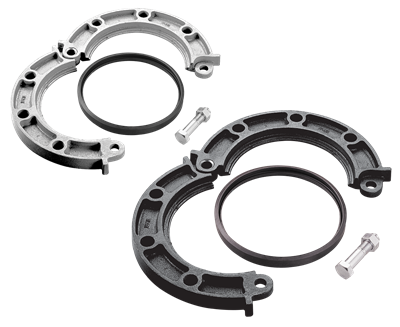

The VSH Shurjoint Model 7041BE Flange Adapter allows for a direct connection of a BS10-E flange. The specially designed gasket enables the transition from a grooved system to a flanged system or component with this single flange adapter. The two-segment design provides an easy and fast installation. All include an EPDM rubber gasket and plated track bolts and nuts.
| color | silver |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | galvanised |
| manufacturer | Shurjoint |
| shape | straight (0º) |
| connection type | groove (coupling), flange |
| sealing | EPDM |
| item | VSH Shurjoint flange adapter BS10-E F-FL 219.1 galvanized |
|---|---|
| item number | 1041T0085003 |
| product number | 1041T0085003 |
| item group | 7041BE - VSH Shurjoint BS10-E flange adapter (groove x flange), EPDM gasket |
| size | 219.1 (DN200) galvanized |
| weight | 8.4 |
| dimensions | 29x343x343 |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 7041BE |
| max operating pressure liquid | 20 bar |
|---|---|
| min. medium temperature | -34 °C |
| max medium temperature | 110 °C |
| label | value |
|---|---|
| d1 | 219.1 |
| DN1 | DN200 |
| l1 | 29 |
| d2 | 343.0 |
| DN2 | DN200 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Galvanic/electrolytic zinc plated |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Galvanic/electrolytic zinc plated |
| Shape | Straight |
| Model | 2-part |
| Bend angle | 0° |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Nominal diameter connection 1 | DN 200 |
| Outer pipe diameter connection 1 | 219.1mm |
| Outer pipe diameter connection 1 (imperial) | 8.63" |
| Connection 1 | Ribbing groove (groove coupling) |
| Nominal diameter connection 2 | DN 200 |
| Outer pipe diameter connection 2 | 343mm |
| Outer pipe diameter connection 2 (imperial) | 13.5" |
| Connection 2 | Flange |
| Main colour fitting | Grey |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | No |
| Length | 29mm |
| Length of connection 1 | 29mm |
| Length of connection 1 (imperial) | 1.14" |
| Medium temperature (continuous) | -34°C - 110°C |
| Medium temperature (continuous) (imperial) | -29.2°F - 230°F |
| Max. operating pressure at 20 °C | 20bar |
| Max. operating pressure at 20 °C (imperial) | 290.08psi |
| With thermal insulation | No |
| With sealing rings/gaskets | No |
| Capped | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
