type K9E

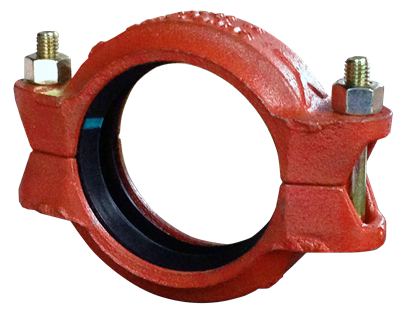

K9E is the designation for model K9 with a Grade E EPDM gasket. The VSH Shurjoint Model K9 is a T&G (tongue & groove) design coupling for moderate pressure applications where rigidity is required including valve connections, mechanical rooms, fire mains and long straight runs. The built-in teeth and T&G mechanism firmly grasp the pipe ends to eliminate undesired flex. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13.
applications
solutions
approvals
| color | red |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| shape | straight |
| connection type | groove (coupling) |
| sealing | EPDM |
| item | VSH Shurjoint fire rigid coupling FF 168.3 red ISO |
|---|---|
| item number | 100K90065002 |
| product number | 100K90065002 |
| item group | K9E - VSH Shurjoint rigid coupling (tongue & groove design) (2 x groove) |
| size | 168.3 (DN150) red ISO |
| weight | 2.7 kg |
| dimensions | 53x255x200 mm |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | K9E |
| max operating pressure liquid | 24 bar |
|---|---|
| min. medium temperature | -34 °C |
| max medium temperature | 110 °C |
| label | value |
|---|---|
| d1 | 168.3 |
| DN1 | DN150 |
| l1 | 27 |
| d2 | 168.3 |
| DN2 | DN150 |
| l2 | 27 |
FM certifications |
download | |
 K9 image |
png | download |
 K9-Combi image |
png | download |
TSU certifications |
download | |
UL certifications |
download | |
ULc certifications |
download | |
VSH Shurjoint CNBOP certifications |
download | |
VdS certifications |
download | |
 Diagram diagram |
png | download |
VSH Shurjoint CSTBat Approval certifications |
download | |
Datasheet submittal sheet |
download | |
VSH Shurjoint Installation Handbook installation- & maintenance document |
download | |
VSH Shurjoint CNBOP certifications |
download | |
UL certifications |
download | |
FM certifications |
download | |
VdS certifications |
download | |
ULc certifications |
download | |
TSU certifications |
download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Straight |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Nominal diameter connection 1 | DN 150 |
| Outer pipe diameter connection 1 | 168.3mm |
| Outer pipe diameter connection 1 (imperial) | 6.63" |
| Connection 1 | Ribbing groove (groove coupling) |
| Nominal diameter connection 2 | DN 150 |
| Outer pipe diameter connection 2 | 168.3mm |
| Outer pipe diameter connection 2 (imperial) | 6.63" |
| Connection 2 | Ribbing groove (groove coupling) |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | No |
| Length | 53mm |
| Length of connection 1 | 26.5mm |
| Length of connection 1 (imperial) | 1.04" |
| Length of connection 2 | 26.5mm |
| Length of connection 2 (imperial) | 1.04" |
| Medium temperature (continuous) | -34°C - 110°C |
| Medium temperature (continuous) (imperial) | -29.2°F - 230°F |
| Max. operating pressure at 20 °C | 24bar |
| Max. operating pressure at 20 °C (imperial) | 348.09psi |
| With thermal insulation | No |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | Yes |
| LPCB quality mark | No |
| ULC quality mark | Yes |
| UL quality mark | Yes |
| VdS quality mark | Yes |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
