couplings group: C7T

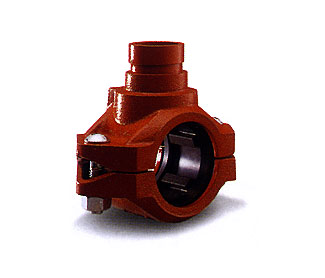

VSH Shurjoint Outlet coupling FFF 73xFNPT1/2x73 orange

Product Image for VSH Shurjoint Outlet coupling FFF 73xFNPT1/2x73 orange
Product Image for VSH Shurjoint Outlet coupling FFF 73xFNPT1/2x73 orange

item: 100C72505012

C7T is the designation for model C7 with a Grade T NBR gasket. VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality. The Model C-7 Outlet Coupling combines the features of a coupling and a reducing outlet. The C-7 is a joining device with an integral reducing outlet, eliminating the need for a mechanical tee or a reducing tee and couplings. The C-7 is available with grooved, male threaded or female threaded outlets. The C-7 coupling is recommended for fire sprinkler services and other applications up to 300 psi (20 Bar) depending on the size and schedule of pipe being used. The C-7 can be used for dry pipe systems or vacuum services up to -10 inHg or 254 mmHg which may occur when the system is drained. All Model C-7 couplings are comprised of an upper and lower ductile iron housings segment, EPDM rubber gasket and plated track bolts & nuts. Housings segments are supplied with our standard painted finishes, i.e. orange or RAL3000 red. Optional finishes such as hot dipped zinc galvanized and custom epoxy coatings are available.
  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"
    • read more
    read less

    applications

    no applications available

    segments

    residential

    residential

    datacenters

    datacenters

    commercial building

    commercial building

    industry

    industry

    show all
    show less

    approvals

    no approvals available

    label

    value

    label

    d1

    value

    73.0

    label

    DN1

    value

    DN65

    label

    l1

    value

    42

    label

    d2

    value

    21.3

    label

    DN2

    value

    DN15

    label

    l2

    value

    79

    label

    d3

    value

    73.0

    label

    DN3

    value

    DN65

    label

    l3

    value

    42

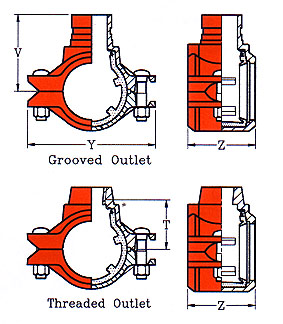

    drawing for product

    characteristics

    color

    orange

    materials

    cast iron (ASTM A536 65-45-12)

    finishing

    varnished

    connection type

    groove (coupling), FPT - female thread conical (NPT)

    sealing

    NBR (Nitrile)

    general

    product group

    fittings (demountable)

    ETIM class

    EC011014 Broaching saddle

    country of origin

    Taiwan

    brand

    VSH

    series

    Shurjoint

    type

    C7T

    product info

    item

    VSH Shurjoint Outlet coupling FFF 73xFNPT1/2x73 orange

    item number

    100C72505012

    product number

    100C72505012

    manufacturer

    Shurjoint

    item group

    C7T - VSH Shurjoint outlet coupling, NBR gasket

    size

    73xFNPT1/2x73 orange

    weight

    2.2 kg

    dimensions

    83x161x142 mm

    technical

    max operating pressure liquid

    35 bar

    min. medium temperature

    -29 °C

    max medium temperature

    82 °C

    image for C7

    image | jpg

    C7

    link to sheet | pdf

    MSDS_Shurjoint_Orange_paint

    image for Diagram

    diagram | jpg

    Diagram

    submittal sheet | pdf

    Datasheet

    installation- & maintenance document | pdf
