type 79T

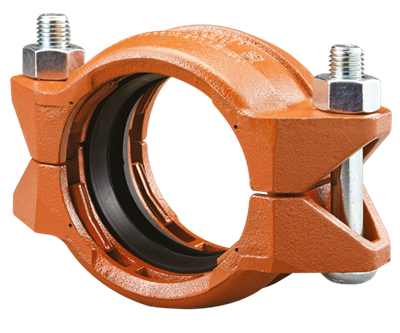

The Shurjoint Model 79 “Wildcat” coupling is designed to mechanically to join plain-end or beveled end carbon steel pipe. The “Wildcat” couplings can be used for a variety of applications including mining, process piping, manifold piping and oilfield services. The “Wildcat” couplings feature case-hardened jaws* within the housings and large diameter heat treated track bolts that when tightened securely grip the pipe surface. As with grooved couplings, a C-shaped rubber gasket effectively seals the pipe ends. (* For sizes larger than 14” (350 mm), jaws are made of 17-4PH stainless steel.)
The Model 79 coupling is recommended for use on carbon steel pipe with a hardness less than HB150, not recommended for stainless steel, plastic, HDPE, cast iron, or other brittle pipes.
applications
solutions
| color | orange |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| shape | straight |
| connection type | groove (coupling) |
| sealing | NBR (Nitrile) |
| item | VSH Shurjoint Plain End coupling for steel pipe FF 60.3 (DN50) orange UNC |
|---|---|
| item number | 100790020004 |
| product number with GTIN | 100790020004 (00670750320842) |
| item group | 79T - VSH Shurjoint wildcat coupling (2 x clamp), NBR gasket |
| size | 60.3 (DN50) orange |
| weight | 3.18 kg |
| dimensions | 90x151x95 mm |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint Plain-End |
| type | 79T |
| max operating pressure liquid | 52 bar |
|---|---|
| min. medium temperature | -29 °C |
| max medium temperature | 82 °C |
| label | value |
|---|---|

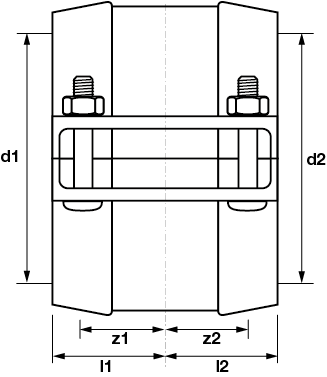

| d1 | 60.3 |
| DN1 | DN50 |
| l1 | 45 |
| z1 | 0 |
| es1 | 45 |
| d2 | 60.3 |
| DN2 | DN50 |
| l2 | 45 |
| z2 | 0 |
| es2 | 45 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Straight |
| Model | 2-part |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Nominal diameter connection 1 | DN 50 |
| Outer pipe diameter connection 1 | 60.3mm |
| Outer pipe diameter connection 1 (imperial) | 2.37" |
| Connection 1 | Ribbing groove (groove coupling) |
| Nominal diameter connection 2 | DN 50 |
| Outer pipe diameter connection 2 | 60.3mm |
| Outer pipe diameter connection 2 (imperial) | 2.37" |
| Connection 2 | Ribbing groove (groove coupling) |
| Main colour fitting | Orange |
| Material sealing | NBR (nitrile rubber) |
| With buffer stud | No |
| High tensile strength | Yes |
| Length | 90mm |
| Length of connection 1 | 45mm |
| Length of connection 1 (imperial) | 1.77" |
| Working length connection 1 | 0mm |
| Working length connection 1 (imperial) | 0" |
| Length of connection 2 | 45mm |
| Length of connection 2 (imperial) | 1.77" |
| Working length connection 2 | 0mm |
| Working length connection 2 (imperial) | 0" |
| Medium temperature (continuous) | -29°C - 82°C |
| Medium temperature (continuous) (imperial) | -20.2°F - 179.6°F |
| Max. operating pressure at 20 °C | 52bar |
| Max. operating pressure at 20 °C (imperial) | 754.2psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
