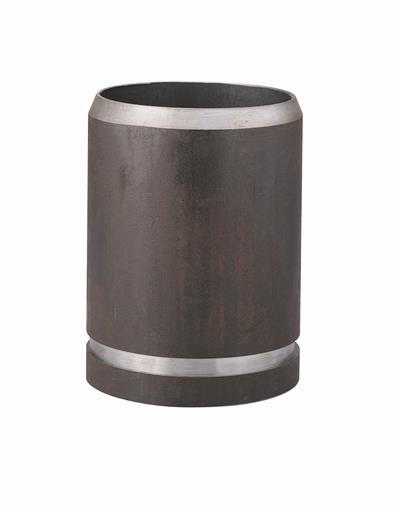

VSH Shurjoint weld nipple l=152mm MØ 168.3

VSH Shurjoint weld nipple l=152mm MØ 168.3

100586560001

type 58

The VSH Shurjoint weld nipple has a beveled welding end for optimal welding performance.The "Cut-groove" on the groove end provides optimal strength at maximum internal diameter and minimum pressure loss.

applications

heating cooling compressed air

solutions

building installations industry

approvals

CRN

characteristics

color silver
materials steel
finishing none
manufacturer Shurjoint
shape (0º)
connection type groove (fitting), weld

product info

item VSH Shurjoint weld nipple l=152mm MØ 168.3
item number 100586560001
product number with GTIN 100586560001 (04710574000707)
item group 58 - VSH Shurjoint grooved weld nipple (groove x welding end)
size 168.3 (DN150) l=152mm
weight 4.5 kg
dimensions 169x169x152 mm

general

product group fittings
ETIM class EC003024 Fitting with 2 connections
country of origin Taiwan
brand VSH
series Shurjoint
type 58

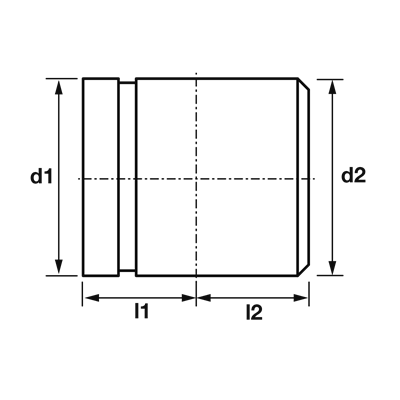

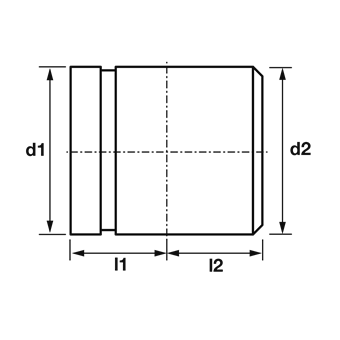

label value
d1 168.3
DN1 DN150
l1 50
d2 168.3
DN2 DN150
l2 102
see above for the diagram with these dimensions.
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Steel
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Steel
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Straight
Model 1-part
Bend angle
Reducing No
Eccentric No
System-specific No
Nominal diameter connection 1 DN 150
Outer pipe diameter connection 1 168.3mm
Outer pipe diameter connection 1 (imperial) 6.63"
Connection 1 Groove
Nominal diameter connection 2 DN 150
Outer pipe diameter connection 2 168.3mm
Outer pipe diameter connection 2 (imperial) 6.63"
Connection 2 Welding connection
Main colour fitting Grey
With buffer stud No
High tensile strength Yes
Length 169mm
Length of connection 1 50mm
Length of connection 1 (imperial) 1.97"
Length of connection 2 102mm
Length of connection 2 (imperial) 4.02"
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
KIWA certified No
Gastec QA mark No
KOMO certified No
