group: 57
item: 100576260001

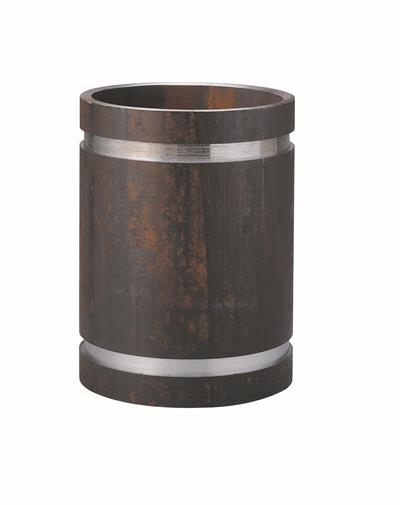

The VSH Shurjoint Model 57 nipple allows for a direct connection with grooved couplings.
no applications available
no segments available
no approvals available
color
black
materials
steel (ASTM A53 Grade B)
finishing
none
manufacturer
Shurjoint
connection type
groove (fitting)
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
country of origin
Taiwan
brand
VSH
series
Shurjoint
type
57
item
VSH Shurjoint nipple 165.1 (6) x6L black
item number
100576260001
product number
100576260001
item group
57 - VSH Shurjoint nipple (2 x groove)
size
165.1 (DN150) x6L black
weight
4.3 kg
dimensions
152x165x165 mm

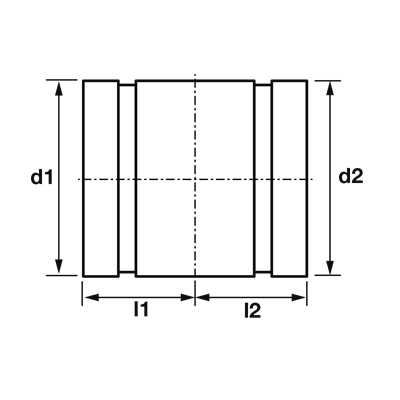

label
value
label
d1
value
165.1
label
DN1
value
DN150
label
l1
value
76
label
d2
value
165.1
label
DN2
value
DN150
label
l2
value
76
label
value
label
ETIM class
label
Material connection 1
value
Steel
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Steel
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Nominal diameter connection 1
value
DN 150
label
Outer pipe diameter connection 1
value
165.1mm
label
Outer pipe diameter connection 1 (imperial)
value
6.5"
label
Connection 1
value
Groove
label
Nominal diameter connection 2
value
DN 150
label
Outer pipe diameter connection 2
value
165.1mm
label
Outer pipe diameter connection 2 (imperial)
value
6.5"
label
Connection 2
value
Groove
label
Main colour fitting
value
Black
label
With buffer stud
value
No
label
Length
value
152mm
label
Length of connection 1
value
76mm
label
Length of connection 1 (imperial)
value
2.99"
label
Length of connection 2
value
76mm
label
Length of connection 2 (imperial)
value
2.99"
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
