VSH Shurjoint Nipple 141.3 (5) x6L black

VSH Shurjoint Nipple 141.3 (5) x6L black

100575560001

type 57

The VSH  Shurjoint Model 57 nipple allows for a direct connection with grooved couplings.

approvals

CRN

characteristics

color black
materials steel
finishing none
manufacturer Shurjoint
connection type groove (fitting)

product info

item VSH Shurjoint Nipple 141.3 (5) x6L black
item number 100575560001
product number with GTIN 100575560001 (00670750544828)
item group 57 - VSH Shurjoint nipple (2 x groove)
weight 3.3 kg
dimensions 152x141x141 mm

general

product group fittings
ETIM class EC003024 Fitting with 2 connections
country of origin Taiwan
brand VSH
series Shurjoint
type 57
label value
d1 141.3
DN1 DN125
l1 76
d2 141.3
DN2 DN125
l2 76

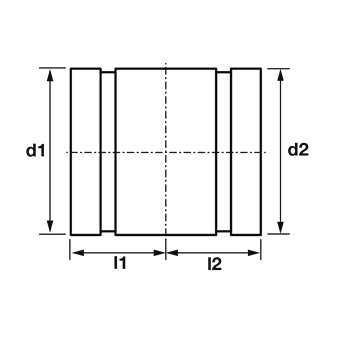

see above for the diagram with these dimensions.
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Steel
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Steel
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Straight
Reducing No
Eccentric No
System-specific No
Nominal diameter connection 1 DN 125
Outer pipe diameter connection 1 141.3mm
Outer pipe diameter connection 1 (imperial) 5.56"
Connection 1 Groove
Nominal diameter connection 2 DN 125
Outer pipe diameter connection 2 141.3mm
Outer pipe diameter connection 2 (imperial) 5.56"
Connection 2 Groove
Main colour fitting Black
With buffer stud No
Length 152mm
Length of connection 1 76mm
Length of connection 1 (imperial) 2.99"
Length of connection 2 76mm
Length of connection 2 (imperial) 2.99"
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
KIWA certified No
Gastec QA mark No
KOMO certified No
