group: 55
item: 100552020001

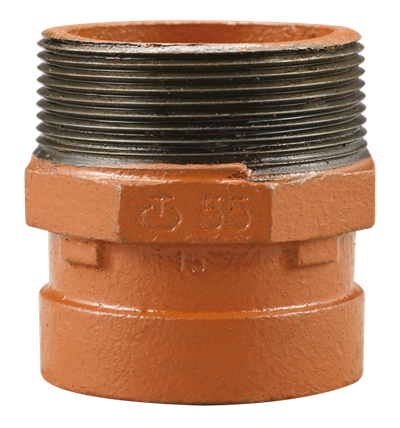

The VSH Shurjoint Model 55 is a cast adapter that allows for a direct transition from grooved system to a male threaded system. For other sizes, see our Model 59 pipe nipples.
no applications available
no solutions available
FM
| color | orange |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| shape | straight |
| connection type | groove (fitting), MPT - male thread conical (NPT) |
| item | VSH Shurjoint adapter MM 60.3xMNPT2 orange |
|---|---|
| item number | 100552020001 |
| product number with GTIN | 100552020001 (00670750545733) |
| item group | 55 - VSH Shurjoint grooved adapter (groove x male thread) |
| size | 60.3xMNPT2 orange |
| weight | 0.4 kg |
| dimensions | 60x68x64 mm |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| intrastat code | 73071910 |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 55 |
| max operating pressure liquid | 20 bar |
|---|

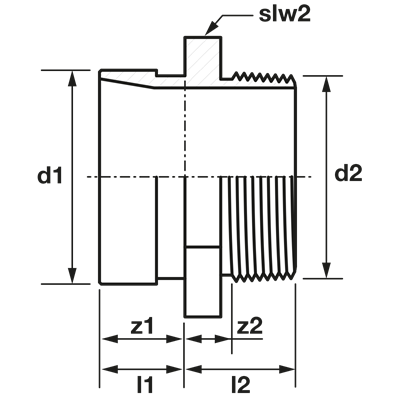

| label | value |
|---|---|
| d1 | 60.3 |
| DN1 | DN50 |
| l1 | 32 |
| z1 | 32 |
| d2 | 60.3 |
| DN2 | DN50 |
| l2 | 32 |
| z2 | 6 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Straight |
| Model | 1-part |
| Reducing | No |
| Eccentric | No |
| System specific | Yes |
| Nominal diameter connection 1 | DN 50 |
| Outer pipe diameter connection 1 | 60.3mm |
| Outer pipe diameter connection 1 (imperial) | 2.37" |
| Connection 1 | Groove |
| Nominal diameter connection 2 | DN 50 |
| Outer pipe diameter connection 2 | 60.3mm |
| Outer pipe diameter connection 2 (imperial) | 2.37" |
| Connection 2 | External thread conical (NPT) |
| Main colour fitting | Orange |
| With buffer stud | No |
| High tensile strength | Yes |
| Length | 60.3mm |
| Length of connection 1 | 32mm |
| Length of connection 1 (imperial) | 1.26" |
| Working length connection 1 | 32mm |
| Working length connection 1 (imperial) | 1.26" |
| Length of connection 2 | 32mm |
| Length of connection 2 (imperial) | 1.26" |
| Working length connection 2 | 6mm |
| Working length connection 2 (imperial) | 0.24" |
| Max. operating pressure at 20 °C | 20bar |
| Max. operating pressure at 20 °C (imperial) | 290.08psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | Yes |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
