group: 55
item: 100551515003

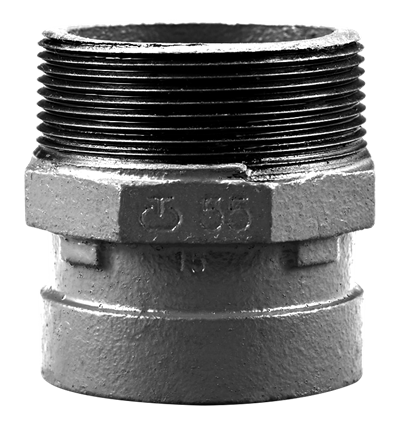

The VSH Shurjoint Model 55 is a cast adapter that allows for a direct transition from grooved system to a male threaded system. For other sizes, see our Model 59 pipe nipples.
heating
cooling
compressed air
dry fire main
building installations
industry
FM
color | silver |
---|---|
materials | cast iron (ASTM A536 65-45-12) |
finishing | galvanised |
manufacturer | Shurjoint |
shape | straight |
connection type | groove (fitting), R - male thread gas conical (BSPT) |
item | VSH Shurjoint adapter MM 48.3xR1 1/2" galv |
---|---|
item number with GTIN | 100551515003 (08711985478785) |
product number with GTIN | 100551515003 (08711985478785) |
item group | 55 - VSH Shurjoint grooved adapter (groove x male thread) |
size | 48.3xR1 1/2 galvanized |
weight | 0.35 kg |
dimensions | 49x64x54 mm |
product group | fittings (demountable) |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
intrastat code | 73071910 |
country of origin | Taiwan |
brand | VSH |
series | Shurjoint |
type | 55 |
unsps | 40171704 |
max operating pressure liquid | 20 bar |
---|
label | value |
---|---|
d1 | 48.3 |
DN1 | DN40 |
l1 | 32 |
z1 | 32 |
d2 | 48.3 |
DN2 | DN40 |
l2 | 32 |
z2 | 10 |
55-Combi image |
png | download |
55-GV image |
png | download |
FM certifications |
download | |
Diagram diagram |
png | download |
Datasheet submittal sheet |
download | |
VSH Shurjoint Installation Handbook installation- & maintenance document |
download | |
VSH Shurjoint instructions installation- & maintenance document |
download |
label | value |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
Material connection 1 | Cast iron |
Surface protection connection 1 | Galvanic/electrolytic zinc plated |
Material connection 2 | Cast iron |
Surface protection connection 2 | Galvanic/electrolytic zinc plated |
Shape | Straight |
Model | 1-part |
Reducing | No |
Eccentric | No |
System specific | Yes |
Nominal diameter connection 1 | DN 40 |
Outer pipe diameter connection 1 | 48.3mm |
Outer pipe diameter connection 1 (imperial) | 1.9" |
Connection 1 | Groove |
Nominal diameter connection 2 | DN 40 |
Outer pipe diameter connection 2 | 48.3mm |
Outer pipe diameter connection 2 (imperial) | 1.9" |
Connection 2 | External thread conical BSPT-R (ISO 7-1 / EN 10226-1) |
Main colour fitting | Grey |
With buffer stud | No |
High tensile strength | Yes |
Length | 49mm |
Length of connection 1 | 32mm |
Length of connection 1 (imperial) | 1.26" |
Working length connection 1 | 32mm |
Working length connection 1 (imperial) | 1.26" |
Length of connection 2 | 32mm |
Length of connection 2 (imperial) | 1.26" |
Working length connection 2 | 10mm |
Working length connection 2 (imperial) | 0.39" |
Max. operating pressure at 20 °C | 20bar |
Max. operating pressure at 20 °C (imperial) | 290.08psi |
With sealing rings/gaskets | No |
Capped | No |
With connection indicator | No |
With drain valve | No |
With de-aerator | No |
FM quality mark | Yes |
LPCB quality mark | No |
ULC quality mark | No |
UL quality mark | No |
VdS quality mark | No |
DVGW quality mark for gas | No |
DVGW quality mark for water | No |
Certified according to NF 545 | No |
KIWA certified | No |
Gastec QA mark | No |
KOMO certified | No |
Gastec QA - AR 214 (H2) | No |
