The VSH Shurjoint Model 54 is a cast adapter that allows for a direct transition from grooved system to a female threaded system.
VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
heating
cooling
compressed air
building installations
industry
no approvals available
| color | silver |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | galvanised |
| manufacturer | Shurjoint |
| connection type | groove (fitting), Rc - female thread gas conical (BSPT) |
| item | VSH Shurjoint adapter MF 60.3xRc2" galvanized |
|---|---|
| item number | 100542020004 |
| product number with GTIN | 100542020004 (08711985463439) |
| item group | 54 - VSH Shurjoint grooved adapter (groove x female thread) |
| size | 60.3 xRc2 galvanized |
| weight | 0.42 kg |
| dimensions | 61x61x64 mm |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 54 |
| label | value |
|---|---|
| d1 | 60.3 |
| DN1 | DN50 |
| l1 | 32 |
| d2 | 60.3 |
| DN2 | DN50 |
| l2 | 32 |
| z2 | 13 |
 54-Combi image |
png | download |

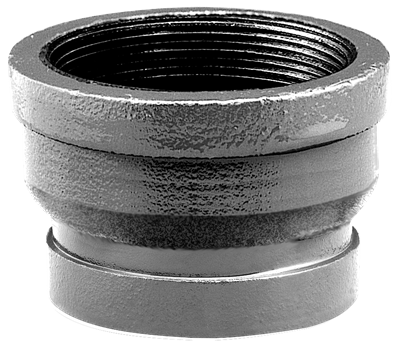

 54-GV image |
png | download |
 Diagram diagram |
png | download |
VSH Shurjoint instructions installation- & maintenance document |
download | |
VSH Shurjoint Installation Handbook installation- & maintenance document |
download | |
VSH Shurjoint Installation Handbook installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Galvanic/electrolytic zinc plated |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Galvanic/electrolytic zinc plated |
| Shape | Straight |
| Reducing | No |
| Eccentric | No |
| System specific | Yes |
| Nominal diameter connection 1 | DN 50 |
| Outer pipe diameter connection 1 | 60.3mm |
| Outer pipe diameter connection 1 (imperial) | 2.37" |
| Connection 1 | Groove |
| Nominal diameter connection 2 | DN 50 |
| Outer pipe diameter connection 2 | 60.3mm |
| Outer pipe diameter connection 2 (imperial) | 2.37" |
| Connection 2 | Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1) |
| Main colour fitting | Grey |
| With buffer stud | No |
| High tensile strength | Yes |
| Length | 61mm |
| Length of connection 1 | 32mm |
| Length of connection 1 (imperial) | 1.26" |
| Length of connection 2 | 32mm |
| Length of connection 2 (imperial) | 1.26" |
| Working length connection 2 | 12.9mm |
| Working length connection 2 (imperial) | 0.51" |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
