100541515001
type 54

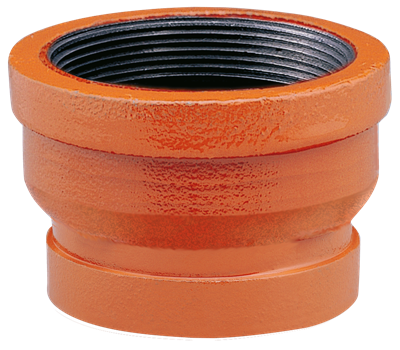

The VSH Shurjoint Model 54 is a cast adapter that allows for a direct transition from grooved system to a female threaded system.
VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
applications
solutions
| color | orange |
|---|---|
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| manufacturer | Shurjoint |
| connection type | groove (fitting), FPT - female thread conical (NPT) |
| item | VSH Shurjoint adapter MF 48.3xFNPT1 1/2 orange |
|---|---|
| item number | 100541515001 |
| product number with GTIN | 100541515001 (00670750545139) |
| item group | 54 - VSH Shurjoint grooved adapter (groove x female thread) |
| size | 48.3xFNPT1 1/2 orange |
| weight | 0.31 kg |
| dimensions | 48x48x60 mm |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 54 |
| label | value |
|---|---|
| d1 | 48.3 |
| DN1 | DN40 |
| l1 | 30 |
| d2 | 48.3 |
| DN2 | DN40 |
| l2 | 30 |
| z2 | 12 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Surface protection connection 1 | Lacquered |
| Material connection 2 | Cast iron |
| Surface protection connection 2 | Lacquered |
| Shape | Straight |
| Reducing | No |
| Eccentric | No |
| System specific | Yes |
| Nominal diameter connection 1 | DN 40 |
| Outer pipe diameter connection 1 | 48.3mm |
| Outer pipe diameter connection 1 (imperial) | 1.9" |
| Connection 1 | Groove |
| Nominal diameter connection 2 | DN 40 |
| Outer pipe diameter connection 2 | 48.3mm |
| Outer pipe diameter connection 2 (imperial) | 1.9" |
| Connection 2 | Internal thread conical (NPT) |
| Main colour fitting | Orange |
| With buffer stud | No |
| High tensile strength | Yes |
| Length | 48.3mm |
| Length of connection 1 | 30mm |
| Length of connection 1 (imperial) | 1.18" |
| Length of connection 2 | 30mm |
| Length of connection 2 (imperial) | 1.18" |
| Working length connection 2 | 11.7mm |
| Working length connection 2 (imperial) | 0.46" |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
