VSH Shurjoint stainless steel concentric reducer (2 x groove)

group: SS-50

The Shurjoint Model SS-50 stainless steel fittings are investment cast in sizes to 8” and sand cast or wrought in 10" – 24”. Materials are in compliance with NSF/ANSI 372 for potable water service applications. For wrought sizes 10” and higher, please refer to datasheets for models WS-21 or contact Shurjoint Customer Service.
read more
read less

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

CRN

CRN

FM

FM

NSF

NSF

UL

UL

ULc

ULc

item

size

d1

DN1

l1

d2

DN2

l2

size

42.4x33.4 304

d1

42.2

DN1

DN32

l1

32

d2

33.7

DN2

DN25

l2

32

size

42.4x33.4 316

d1

42.2

DN1

DN32

l1

32

d2

33.7

DN2

DN25

l2

32

size

48.3x33.4 304

d1

48.3

DN1

DN40

l1

32

d2

33.7

DN2

DN25

l2

32

size

48.3x33.4 316

d1

48.3

DN1

DN40

l1

32

d2

33.7

DN2

DN25

l2

32

size

48.3x42.4 304

d1

48.3

DN1

DN40

l1

32

d2

42.2

DN2

DN32

l2

32

size

48.3x42.4 316

d1

48.3

DN1

DN40

l1

32

d2

42.2

DN2

DN32

l2

32

size

60.3x33.4 304

d1

60.3

DN1

DN50

l1

32

d2

33.4

DN2

DN25

l2

32

size

60.3x33.4 316

d1

60.3

DN1

DN50

l1

32

d2

33.4

DN2

DN25

l2

32

size

60.3x42.4 304

d1

60.3

DN1

DN50

l1

32

d2

42.2

DN2

DN32

l2

32

size

60.3x42.4 316

d1

60.3

DN1

DN50

l1

32

d2

42.2

DN2

DN32

l2

32

size

60.3x48.3 304

d1

60.3

DN1

DN50

l1

32

d2

48.3

DN2

DN40

l2

32

size

60.3x48.3 316

d1

60.3

DN1

DN50

l1

32

d2

48.3

DN2

DN40

l2

32

size

73x33.4 304

d1

73.0

DN1

DN65

l1

32

d2

33.7

DN2

DN25

l2

32

size

73x33.4 316

d1

73.0

DN1

DN65

l1

32

d2

33.7

DN2

DN25

l2

32

size

73x42.4 304

d1

73.0

DN1

DN65

l1

32

d2

42.2

DN2

DN32

l2

32

size

73x42.4 316

d1

73.0

DN1

DN65

l1

32

d2

42.2

DN2

DN32

l2

32

size

73x48.3 304

d1

73.0

DN1

DN65

l1

32

d2

48.3

DN2

DN40

l2

32

size

73x48.3 316

d1

73.0

DN1

DN65

l1

32

d2

48.3

DN2

DN40

l2

32

size

73x60.3 304

d1

73.0

DN1

DN65

l1

32

d2

60.3

DN2

DN50

l2

32

size

73x60.3 316

d1

73.0

DN1

DN65

l1

32

d2

60.3

DN2

DN50

l2

32

size

76.1x33.4 304

d1

76.1

DN1

DN65

l1

32

d2

33.7

DN2

DN25

l2

32

size

76.1x33.4 316

d1

76.1

DN1

DN65

l1

32

d2

33.7

DN2

DN25

l2

32

size

76.1x42.4 304

d1

76.1

DN1

DN65

l1

32

d2

42.2

DN2

DN32

l2

32

size

76.1x42.4 316

d1

76.1

DN1

DN65

l1

32

d2

42.2

DN2

DN32

l2

32

size

76.1x48.3 304

d1

76.1

DN1

DN65

l1

32

d2

48.3

DN2

DN40

l2

32

size

76.1x48.3 316

d1

76.1

DN1

DN65

l1

32

d2

48.3

DN2

DN40

l2

32

size

76.1x60.3 304

d1

76.1

DN1

DN65

l1

32

d2

60.3

DN2

DN50

l2

32

size

76.1x60.3 316

d1

76.1

DN1

DN65

l1

32

d2

60.3

DN2

DN50

l2

32

size

88.9x42.4 304

d1

88.9

DN1

DN80

l1

32

d2

42.2

DN2

DN32

l2

32

size

88.9x42.4 316

d1

88.9

DN1

DN80

l1

32

d2

42.2

DN2

DN32

l2

32

size

88.9x48.3 304

d1

88.9

DN1

DN80

l1

32

d2

48.3

DN2

DN40

l2

32

size

88.9x48.3 316

d1

88.9

DN1

DN80

l1

32

d2

48.3

DN2

DN40

l2

32

size

88.9x60.3 304

d1

88.9

DN1

DN80

l1

32

d2

60.3

DN2

DN50

l2

32

size

88.9x60.3 316

d1

88.9

DN1

DN80

l1

32

d2

60.3

DN2

DN50

l2

32

size

88.9x73 304

d1

88.9

DN1

DN80

l1

45

d2

73.0

DN2

DN65

l2

45

size

88.9x73 316

d1

88.9

DN1

DN80

l1

45

d2

73.0

DN2

DN65

l2

45

size

88.9x76.1 304

d1

88.9

DN1

DN80

l1

45

d2

76.1

DN2

DN65

l2

45

size

88.9x76.1 316

d1

88.9

DN1

DN80

l1

45

d2

76.1

DN2

DN65

l2

45

size

114.3x60.3 304

d1

114.3

DN1

DN100

l1

38

d2

60.3

DN2

DN50

l2

38

size

114.3x60.3 316

d1

114.3

DN1

DN100

l1

38

d2

60.3

DN2

DN50

l2

38

size

114.3x73 304

d1

114.3

DN1

DN100

l1

51

d2

73.0

DN2

DN65

l2

51

size

114.3x73 316

d1

114.3

DN1

DN100

l1

51

d2

73.0

DN2

DN65

l2

51

size

114.3x76.1 304

d1

114.3

DN1

DN100

l1

51

d2

76.1

DN2

DN65

l2

51

size

114.3x76.1 316

d1

114.3

DN1

DN100

l1

51

d2

76.1

DN2

DN65

l2

51

size

114.3x88.9 304

d1

114.3

DN1

DN100

l1

38

d2

88.9

DN2

DN80

l2

38

size

114.3x88.9 316

d1

114.3

DN1

DN100

l1

38

d2

88.9

DN2

DN80

l2

38

size

139.7x76.1 304

d1

139.7

DN1

DN125

l1

45

d2

76.1

DN2

DN65

l2

45

size

139.7x88.9 304

d1

139.7

DN1

DN125

l1

45

d2

88.9

DN2

DN80

l2

45

size

139.7x114.3 304

d1

139.7

DN1

DN125

l1

45

d2

114.3

DN2

DN100

l2

45

size

139.7x114.3 316

d1

139.7

DN1

DN125

l1

45

d2

114.3

DN2

DN100

l2

45

size

141.3x114.3 304

d1

141.3

DN1

DN125

l1

45

d2

114.3

DN2

DN100

l2

45

size

141.3x114.3 316

d1

141.3

DN1

DN125

l1

45

d2

114.3

DN2

DN100

l2

45

size

165.1x88.9 304

d1

165.1

DN1

DN150

l1

51

d2

88.9

DN2

DN80

l2

51

size

165.1x114.3 304

d1

165.1

DN1

DN150

l1

51

d2

114.3

DN2

DN100

l2

51

size

165.1x114.3 316

d1

165.1

DN1

DN150

l1

51

d2

114.3

DN2

DN100

l2

51

size

165.1x139.7 304

d1

165.1

DN1

DN150

l1

51

d2

139.7

DN2

DN125

l2

51

size

165.1x139.7 316

d1

165.1

DN1

DN150

l1

51

d2

139.7

DN2

DN125

l2

51

size

168.3x88.9 304

d1

168.3

DN1

DN150

l1

51

d2

88.9

DN2

DN80

l2

51

size

168.3x88.9 316

d1

168.3

DN1

DN150

l1

51

d2

88.9

DN2

DN80

l2

51

size

168.3x114.3 304

d1

168.3

DN1

DN150

l1

51

d2

114.3

DN2

DN100

l2

51

size

168.3x114.3 316

d1

168.3

DN1

DN150

l1

51

d2

114.3

DN2

DN100

l2

51

size

168.3x141.3 304

d1

168.3

DN1

DN150

l1

51

d2

141.3

DN2

DN125

l2

51

size

216.3x114.3 304

d1

216.3

DN1

DN200

l1

64

d2

114.3

DN2

DN100

l2

64

size

216.3x139.7 304

d1

216.3

DN1

DN200

l1

64

d2

139.7

DN2

DN125

l2

64

size

216.3x165.1 304

d1

216.3

DN1

DN200

l1

64

d2

165.1

DN2

DN150

l2

64

size

219.1x114.3 304

d1

219.1

DN1

DN200

l1

64

d2

114.3

DN2

DN100

l2

64

size

219.1x114.3 316

d1

219.1

DN1

DN200

l1

64

d2

114.3

DN2

DN100

l2

64

size

219.1x141.3 304

d1

219.1

DN1

DN200

l1

64

d2

141.3

DN2

DN125

l2

64

size

219.1x168.3 304

d1

219.1

DN1

DN200

l1

64

d2

168.3

DN2

DN150

l2

64

size

219.1x168.3 316

d1

219.1

DN1

DN200

l1

64

d2

168.3

DN2

DN150

l2

64

size

273x168.3 304

d1

273.0

DN1

DN250

l1

76

d2

168.3

DN2

DN150

l2

76

size

273x168.3 316

d1

273.0

DN1

DN250

l1

76

d2

168.3

DN2

DN150

l2

76

size

273x219.1 304

d1

273.0

DN1

DN250

l1

76

d2

219.1

DN2

DN200

l2

76

size

273x219.1 316

d1

273.0

DN1

DN250

l1

76

d2

219.1

DN2

DN200

l2

76

size

323.9x219.1 304

d1

323.9

DN1

DN300

l1

89

d2

219.1

DN2

DN200

l2

89

size

323.9x219.1 316

d1

323.9

DN1

DN300

l1

89

d2

219.1

DN2

DN200

l2

89

size

323.9x273 304

d1

323.9

DN1

DN300

l1

89

d2

273.0

DN2

DN250

l2

89

size

323.9x273 316

d1

323.9

DN1

DN300

l1

89

d2

273.0

DN2

DN250

l2

89

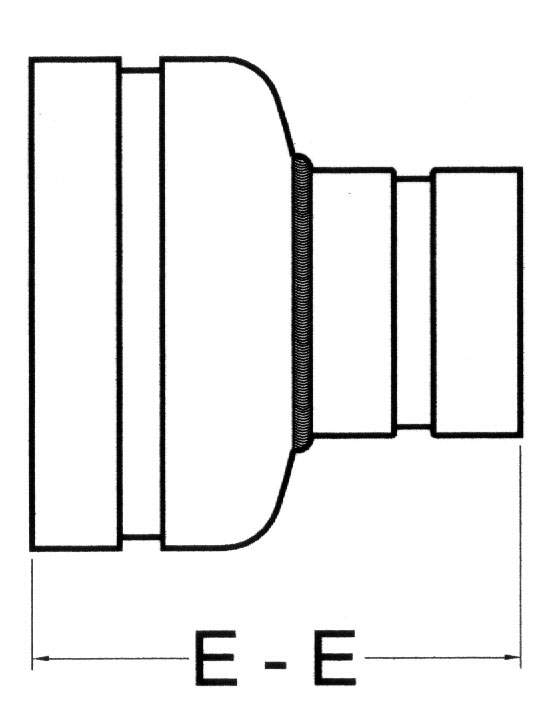

technical drawing for product

characteristics

color

silver

materials

stainless steel (Stainless steel 304 (1.4301), Stainless steel 316 (1.4401))

finishing

none

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint Stainless Steel

type

SS-50

label

value

label

Material connection 1

value

Stainless steel

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Stainless steel

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Groove

label

Connection 2

value

Groove

label

Main colour fitting

value

Grey

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

LPCB quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value
