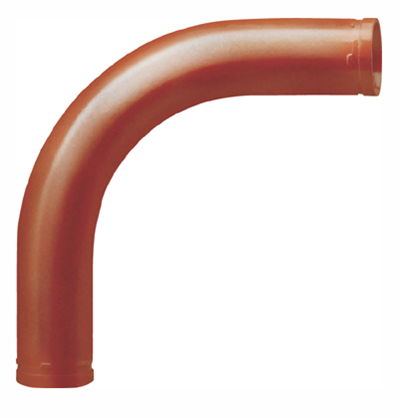

VSH Shurjoint wrought long radius 90° elbow (2 x groove)

VSH Shurjoint wrought long radius 90° elbow (2 x groove)

L90-3D

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.

  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from 6 mm to 104 ”

code size weight dimensions packaging gtin
1L9030030001 88.9 (DN80) orange 6.63 kg 89x374x374 mm
1L9030030003 88.9 (DN80) galvanized 6.63 kg 89x374x374 mm
1L9030045001 114.3 (DN100) orange 10.18 kg 114x463x463 mm
1L9030045003 114.3 (DN100) galvanized 10.18 kg 114x463x463 mm
1L9030065001 168.3 (DN150) orange 27.52 kg 168x694x694 mm
1L9030085001 219.1 (DN200) orange 60 kg 219x923x923 mm
art. No size
1L9030030001 88.9 (DN80) orange
1L9030030003 88.9 (DN80) galvanized
1L9030045001 114.3 (DN100) orange
1L9030045003 114.3 (DN100) galvanized
1L9030065001 168.3 (DN150) orange
1L9030085001 219.1 (DN200) orange

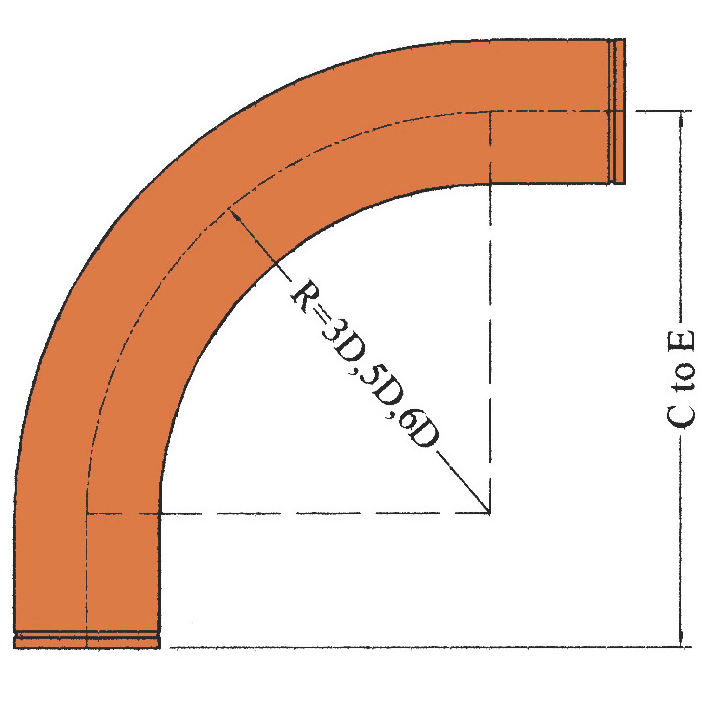

see above for the diagram with these dimensions.
color silver, orange
materials ductile iron (ASTM A536 65-45-12)
finishing galvanised, varnished
manufacturer Shurjoint
shape Elbow
connection type groove (fitting)
product group fittings
country of origin Taiwan
brand VSH
series Shurjoint
type L90-3D
