7707AE is the designation for model 7707A with a Grade E EPDM gasket. The VSH Shurjoint Model 7707A Flexible Coupling is designed for use in a variety of general piping applications of moderate or high pressure services. Working pressure is usually dictated by the wall thickness and rating of the pipe being used. The Model 7707A couplings feature flexibility that can accommodate misalignment, distortion, thermal stress, vibration and noise and also resist seismic tremors. The utilization of Model 7707A couplings can accommodate a curved layout.
heating
cooling
compressed air
sprinkler
dry fire main
vacuum
building installations
fire protection
industry
CRN
FM
UL
ULc
| code | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 177070055007 | 141.3 (DN125) orange UNC | 4.4 kg | 53x245x186 mm | ||
| 177070055008 | 141.3 (DN125) galvanized UNC | 4.4 kg | 53x245x186 mm | ||
| 177070085007 | 219.1 (DN200) orange UNC | 9.06 kg | 62x336x276 mm | ||
| 177070085008 | 219.1 (DN200) galvanized UNC | 9.06 kg | 62x336x276 mm | ||
| 1770700A1007 | 273 (DN250) orange UNC | 12.4 kg | 65x409x343 mm | ||
| 1770700A1008 | 273 (DN250) galvanized UNC | 12.4 kg | 65x409x343 mm | ||
| 1770700A3007 | 323.9 (DN300) orange UNC | 13.8 kg | 66x470x390 mm | ||
| 1770700A3008 | 323.9 (DN300) galvanized UNC | 13.8 kg | 66x470x390 mm |
| art. No | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 |
|---|---|---|---|---|---|---|---|---|---|
| 177070055007 | 141.3 (DN125) orange UNC | 141.3 | DN125 | 27 | 2 | 141.3 | DN125 | 27 | 2 |
| 177070055008 | 141.3 (DN125) galvanized UNC | 141.3 | DN125 | 27 | 2 | 141.3 | DN125 | 27 | 2 |
| 177070085007 | 219.1 (DN200) orange UNC | 219.1 | DN200 | 31 | 2 | 219.1 | DN200 | 31 | 2 |
| 177070085008 | 219.1 (DN200) galvanized UNC | 219.1 | DN200 | 31 | 2 | 219.1 | DN200 | 31 | 2 |
| 1770700A1007 | 273 (DN250) orange UNC | 273.0 | DN250 | 33 | 2 | 273.0 | DN250 | 33 | 2 |
| 1770700A1008 | 273 (DN250) galvanized UNC | 273.0 | DN250 | 33 | 2 | 273.0 | DN250 | 33 | 2 |
| 1770700A3007 | 323.9 (DN300) orange UNC | 323.9 | DN300 | 33 | 2 | 323.9 | DN300 | 33 | 2 |
| 1770700A3008 | 323.9 (DN300) galvanized UNC | 323.9 | DN300 | 33 | 2 | 323.9 | DN300 | 33 | 2 |
| color | silver, orange |
|---|---|
| materials | cast iron (ASTM A536 65-45-12, EPDM) |
| finishing | galvanised, varnished |
| manufacturer | Shurjoint |
| shape | straight (0º) |
| connection type | groove (coupling) |
| sealing | EPDM |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| intrastat code | 73071910 |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| type | 7707AE |
 7707 image |
png | download |
 7707-GV image |
png | download |

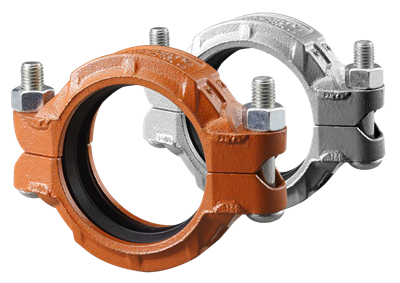

 7707A-Combi image |
png | download |
FM certifications |
download | |
UL certifications |
download | |
ULc certifications |
download | |

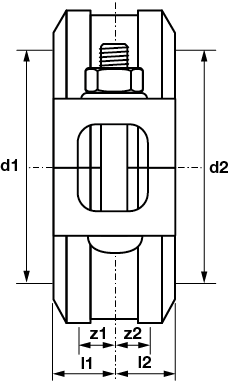

 Diagram diagram |
png | download |
Datasheet submittal sheet |
download | |
VSH Shurjoint Installation Handbook installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Cast iron |
| Material connection 2 | Cast iron |
| Shape | Straight |
| Bend angle | 0° |
| Reducing | No |
| Eccentric | No |
| System specific | No |
| Connection 1 | Ribbing groove (groove coupling) |
| Connection 2 | Ribbing groove (groove coupling) |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | No |
| Working length connection 1 | 1.6mm |
| Working length connection 1 (imperial) | 0.06" |
| Working length connection 2 | 1.6mm |
| Working length connection 2 (imperial) | 0.06" |
| Medium temperature (continuous) | -34°C - 110°C |
| Medium temperature (continuous) (imperial) | -29.2°F - 230°F |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | Yes |
| LPCB quality mark | No |
| ULC quality mark | Yes |
| UL quality mark | Yes |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
