VSH Shurjoint true-Y (3 x groove)

group: 7137

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

item

size

d1

DN1

l1

d2

DN2

l2

d3

DN3

l3

size

60.3 orange

d1

60.3

DN1

DN50

l1

83

d2

60.3

DN2

DN50

l2

70

d3

60.3

DN3

DN50

l3

83

size

60.3 galvanized

d1

60.3

DN1

DN50

l1

83

d2

60.3

DN2

DN50

l2

70

d3

60.3

DN3

DN50

l3

83

size

73 orange

d1

73.0

DN1

DN65

l1

95

d2

73.0

DN2

DN65

l2

76

d3

73.0

DN3

DN65

l3

95

size

73 Galvanized

d1

73.0

DN1

DN65

l1

95

d2

73.0

DN2

DN65

l2

76

d3

73.0

DN3

DN65

l3

95

size

76.1 orange

d1

76.1

DN1

DN65

l1

95

d2

76.1

DN2

DN65

l2

76

d3

76.1

DN3

DN65

l3

95

size

76.1 galvanized

d1

76.1

DN1

DN65

l1

95

d2

76.1

DN2

DN65

l2

76

d3

76.1

DN3

DN65

l3

95

size

88.9 orange

d1

88.9

DN1

DN80

l1

108

d2

88.9

DN2

DN80

l2

83

d3

88.9

DN3

DN80

l3

108

size

88.9 galvanized

d1

88.9

DN1

DN80

l1

108

d2

88.9

DN2

DN80

l2

83

d3

88.9

DN3

DN80

l3

108

size

114.3 orange

d1

114.3

DN1

DN100

l1

127

d2

114.3

DN2

DN100

l2

95

d3

114.3

DN3

DN100

l3

127

size

114.3 galvanized

d1

114.3

DN1

DN100

l1

127

d2

114.3

DN2

DN100

l2

95

d3

114.3

DN3

DN100

l3

127

size

139.7 orange

d1

139.7

DN1

DN125

l1

140

d2

139.7

DN2

DN125

l2

102

d3

139.7

DN3

DN125

l3

140

size

139.7 galvanized

d1

139.7

DN1

DN125

l1

140

d2

139.7

DN2

DN125

l2

102

d3

139.7

DN3

DN125

l3

140

size

141.3 orange

d1

141.3

DN1

DN125

l1

140

d2

141.3

DN2

DN125

l2

102

d3

141.3

DN3

DN125

l3

140

size

141.3 Galvanized

d1

141.3

DN1

DN125

l1

140

d2

141.3

DN2

DN125

l2

102

d3

141.3

DN3

DN125

l3

140

size

165.1 orange

d1

165.1

DN1

DN150

l1

165

d2

165.1

DN2

DN150

l2

114

d3

165.1

DN3

DN150

l3

165

size

165.1 galvanized

d1

165.1

DN1

DN150

l1

165

d2

165.1

DN2

DN150

l2

114

d3

165.1

DN3

DN150

l3

165

size

168.3 orange

d1

168.3

DN1

DN150

l1

165

d2

168.3

DN2

DN150

l2

114

d3

168.3

DN3

DN150

l3

165

size

168.3 galvanized

d1

168.3

DN1

DN150

l1

165

d2

168.3

DN2

DN150

l2

114

d3

168.3

DN3

DN150

l3

165

size

219.1 orange

d1

219.1

DN1

DN200

l1

197

d2

219.1

DN2

DN200

l2

152

d3

219.1

DN3

DN200

l3

197

size

219.1 galvanized

d1

219.1

DN1

DN200

l1

197

d2

219.1

DN2

DN200

l2

152

d3

219.1

DN3

DN200

l3

197

size

273 orange, fab.

d1

273.0

DN1

DN250

l1

229

d2

273.0

DN2

DN250

l2

165

d3

273.0

DN3

DN250

l3

229

size

273 galvanized, fab.

d1

273.0

DN1

DN250

l1

229

d2

273.0

DN2

DN250

l2

165

d3

273.0

DN3

DN250

l3

229

size

323.9 orange, fab.

d1

323.9

DN1

DN300

l1

254

d2

323.9

DN2

DN300

l2

178

d3

323.9

DN3

DN300

l3

254

size

323.9 galvanized, fab.

d1

323.9

DN1

DN300

l1

254

d2

323.9

DN2

DN300

l2

178

d3

323.9

DN3

DN300

l3

254

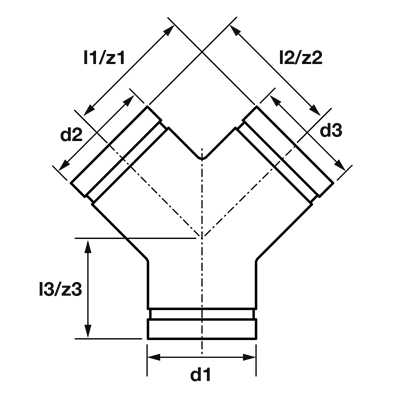

technical drawing for product

characteristics

color

silver, orange

materials

cast iron (ASTM A536 65-45-12)

finishing

galvanised, varnished

manufacturer

Shurjoint

shape

Y-piece 45 degrees

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003025 Fitting with 3 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

7137

label

value

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Material connection 3

value

Cast iron

label

Material quality connection 3

value

ASTM A536 Grade 65-45-12

label

Model

value

Y-piece

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

No

label

Connection 1

value

Groove

label

Connection 2

value

Groove

label

Connection 3

value

Groove

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
