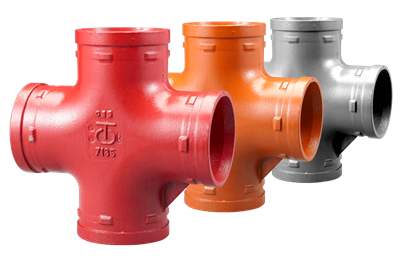

VSH Shurjoint cross (4 x groove)

VSH Shurjoint cross (4 x groove)

7135

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

applications

heating cooling compressed air sprinkler dry fire main

solutions

building installations fire protection industry

approvals

CRN FM UL ULc
assortment
code size weight dimensions packaging gtin
171350010001 33.4 (DN25) orange, fab. 0.6 kg 114x33x114 mm
171350010002 33.4 (DN25) red, fab. 0.6 kg 114x33x114
171350010003 33.4 (DN25) galvanized, fab. 0.6 kg 114x33x114 mm
171350012001 42.2 (DN32) orange 0.75 kg 140x43x140 mm 08711985478150
171350012002 42.2 (DN32) red 0.75 kg 140x42x140
171350012003 42.2 (DN32) galvanized 0.75 kg 140x42x140 mm
171350015001 48.3 (DN40) orange 0.87 kg 140x49x140 mm 08711985478167
171350015002 48.3 (DN40) red 0.87 kg 140x48x140
171350015003 48.3 (DN40) galvanized 0.87 kg 140x48x140 mm
171350020001 60.3 (DN50) orange 1.2 kg 166x61x166 mm 08711985478174
171350020002 60.3 (DN50) red 1.2 kg 166x60x166
171350020003 60.3 (DN50) galvanized 1.2 kg 166x60x166 mm
171350025001 73 (DN65) orange 3 kg 190x73x190 mm
171350025002 73 (DN65) red 3 kg 190x73x190 mm
171350025003 73 (DN65) galvanized 3 kg 190x73x190 mm
171350029001 76.1 (DN 65) orange 3 kg 190x77x190 mm 08711985478181
171350029002 76.1 (DN65) red 3 kg 190x76x190 mm
171350029003 76.1 (DN 65) galvanized 3 kg 190x76x190 mm
171350030001 88.9 (DN80) orange 3.1 kg 216x89x216 mm 08711985478198
171350030002 88.9 (DN80) red 3.1 kg 216x89x216 mm
171350030003 88.9 (DN80) galvanized 3.1 kg 216x89x216 mm
171350045001 114.3 (DN100) orange 5.2 kg 254x115x254 mm 08711985478204
171350045002 114.3 (DN100) red 5.2 kg 254x114x254 mm
171350045003 114.3 (DN100) galvanized 5.2 kg 254x114x254 mm
171350052001 139.7 (DN 125) orange 5.9 kg 280x140x280 mm 08711985478211
171350052002 139.7 (DN125) red 5.9 kg 280x140x280 mm
171350052003 139.7 (DN 125) galvanized 5.9 kg 280x140x280 mm
171350055001 141.3 (DN125) orange 5.9 kg 280x141x280 mm
171350055002 141.3 (DN125) red 5.9 kg 280x141x280
171350055003 141.3 (DN125) galvanized 5.9 kg 280x141x280 mm
171350062001 165.1 (DN 150) orange 14.5 kg 330x165x330 mm bag (1 pce) 08711985478228
171350062002 165.1 (DN150) red 14.5 kg 330x165x330
171350062003 165.1 (DN 150) galvanized 14.5 kg 330x165x330 mm
171350065001 168.3 (DN150) orange 14.5 kg 330x169x330 mm bag (1 pce) 08711985478235
171350065002 168.3 (DN150) red 14.5 kg 330x168x330
171350065003 168.3 (DN150) galvanized 14.5 kg 330x168x330 mm
171350080002 216.3 (DN200) red 20 kg 394x216x394
171350085001 219.1 (DN200) orange 20 kg 394x220x394 mm bag (1 pce) 08711985478242
171350085002 219.1 (DN200) red 20 kg 394x219x394 mm
171350085003 219.1 (DN200) galvanized 20 kg 394x219x394 mm
1713500A1001 273 (DN250) orange 33 kg 458x273x458 mm
1713500A1003 273 (DN250) galvanized 33 kg 458x273x458 mm
1713500A3001 323.9 (DN300) orange 44 kg 508x324x508 mm
1713500A3003 323.9 (DN300) galvanized 44 kg 508x324x508 mm
dimensions
art. No size d1 DN1 l1 d2 DN2 l2 d3 DN3 l3 d4 DN4 l4
171350010001 33.4 (DN25) orange, fab. 33.4 DN25 57 33.4 DN25 57 33.4 DN25 57 33.4 DN25 57
171350010002 33.4 (DN25) red, fab. 33.4 DN25 57 33.4 DN25 57 33.4 DN25 57 33.4 DN25 57
171350010003 33.4 (DN25) galvanized, fab. 33.4 DN25 57 33.4 DN25 57 33.4 DN25 57 33.4 DN25 57
171350012001 42.2 (DN32) orange 42.4 DN32 70 42.4 DN32 70 42.4 DN32 70 42.4 DN32 70
171350012002 42.2 (DN32) red 42.2 DN32 70 42.2 DN32 70 42.2 DN32 70 42.2 DN32 70
171350012003 42.2 (DN32) galvanized 42.4 DN32 70 42.4 DN32 70 42.4 DN32 70 42.4 DN32 70
171350015001 48.3 (DN40) orange 48.3 DN40 70 48.3 DN40 70 48.3 DN40 70 48.3 DN40 70
171350015002 48.3 (DN40) red 48.3 DN40 70 48.3 DN40 70 48.3 DN40 70 48.3 DN40 70
171350015003 48.3 (DN40) galvanized 48.3 DN40 70 48.3 DN40 70 48.3 DN40 70 48.3 DN40 70
171350020001 60.3 (DN50) orange 60.3 DN50 83 60.3 DN50 83 60.3 DN50 83 60.3 DN50 83
171350020002 60.3 (DN50) red 60.3 DN50 83 60.3 DN50 83 60.3 DN50 83 60.3 DN50 83
171350020003 60.3 (DN50) galvanized 60.3 DN50 83 60.3 DN50 83 60.3 DN50 83 60.3 DN50 83
171350025001 73 (DN65) orange 73.0 DN65 95 73.0 DN65 95 73.0 DN65 95 73.0 DN65 95
171350025002 73 (DN65) red 73.0 DN65 95 73.0 DN65 95 73.0 DN65 95 73.0 DN65 95
171350025003 73 (DN65) galvanized 73.0 DN65 95 73.0 DN65 95 73.0 DN65 95 73.0 DN65 95
171350029001 76.1 (DN 65) orange 76.1 DN65 95 76.1 DN65 95 76.1 DN65 95 76.1 DN65 95
171350029002 76.1 (DN65) red 76.1 DN65 95 76.1 DN65 95 76.1 DN65 95 76.1 DN65 95
171350029003 76.1 (DN 65) galvanized 76.1 DN65 95 76.1 DN65 95 76.1 DN65 95 76.1 DN65 95
171350030001 88.9 (DN80) orange 88.9 DN80 108 88.9 DN80 108 88.9 DN80 108 88.9 DN80 108
171350030002 88.9 (DN80) red 88.9 DN80 108 88.9 DN80 108 88.9 DN80 108 88.9 DN80 108
171350030003 88.9 (DN80) galvanized 88.9 DN80 108 88.9 DN80 108 88.9 DN80 108 88.9 DN80 108
171350045001 114.3 (DN100) orange 114.3 DN100 127 114.3 DN100 127 114.3 DN100 127 114.3 DN100 127
171350045002 114.3 (DN100) red 114.3 DN100 127 114.3 DN100 127 114.3 DN100 127 114.3 DN100 127
171350045003 114.3 (DN100) galvanized 114.3 DN100 127 114.3 DN100 127 114.3 DN100 127 114.3 DN100 127
171350052001 139.7 (DN 125) orange 139.7 DN125 140 139.7 DN125 140 139.7 DN125 140 139.7 DN125 140
171350052002 139.7 (DN125) red 139.7 DN125 140 139.7 DN125 140 139.7 DN125 140 139.7 DN125 140
171350052003 139.7 (DN 125) galvanized 139.7 DN125 140 139.7 DN125 140 139.7 DN125 140 139.7 DN125 140
171350055001 141.3 (DN125) orange 141.3 DN125 140 141.3 DN125 140 141.3 DN125 140 141.3 DN125 140
171350055002 141.3 (DN125) red 141.3 DN125 140 141.3 DN125 140 141.3 DN125 140 141.3 DN125 140
171350055003 141.3 (DN125) galvanized 141.3 DN125 140 141.3 DN125 140 141.3 DN125 140 141.3 DN125 140
171350062001 165.1 (DN 150) orange 165.1 DN150 165 165.1 DN150 165 165.1 DN150 165 165.1 DN150 165
171350062002 165.1 (DN150) red 165.1 DN150 165 165.1 DN150 165 165.1 DN150 165 165.1 DN150 165
171350062003 165.1 (DN 150) galvanized 165.1 DN150 165 165.1 DN150 165 165.1 DN150 165 165.1 DN150 165
171350065001 168.3 (DN150) orange 168.3 DN150 165 168.3 DN150 165 168.3 DN150 165 168.3 DN150 165
171350065002 168.3 (DN150) red 168.3 DN150 165 168.3 DN150 165 168.3 DN150 165 168.3 DN150 165
171350065003 168.3 (DN150) galvanized 168.3 DN150 165 168.3 DN150 165 168.3 DN150 165 168.3 DN150 165
171350080002 216.3 (DN200) red 216.3 DN200 197 216.3 DN200 197 216.3 DN200 197 216.3 DN200 197
171350085001 219.1 (DN200) orange 219.1 DN200 197 219.1 DN200 197 219.1 DN200 197 219.1 DN200 197
171350085002 219.1 (DN200) red 219.1 DN200 197 219.1 DN200 197 219.1 DN200 197 219.1 DN200 197
171350085003 219.1 (DN200) galvanized 219.1 DN200 197 219.1 DN200 197 219.1 DN200 197 219.1 DN200 197
1713500A1001 273 (DN250) orange 273.0 DN250 229 273.0 DN250 229 273.0 DN250 229 273.0 DN250 229
1713500A1003 273 (DN250) galvanized 273.0 DN250 229 273.0 DN250 229 273.0 DN250 229 273.0 DN250 229
1713500A3001 323.9 (DN300) orange 323.9 DN300 254 323.9 DN300 254 323.9 DN300 254 323.9 DN300 254
1713500A3003 323.9 (DN300) galvanized 323.9 DN300 254 323.9 DN300 254 323.9 DN300 254 323.9 DN300 254
see above for the diagram with these dimensions.
characteristics

characteristics

color silver, red, orange
materials cast iron, steel (ASTM A536 65-45-12, ASTM A53 Grade B)
finishing galvanised, varnished
manufacturer Shurjoint
shape Cross
connection type groove (fitting)
general

general

product group fittings (demountable)
ETIM class EC003026 Fitting with 4 connections
country of origin Taiwan
brand VSH
series Shurjoint
type 7135
downloads
ETIM
label value
ETIM class EC003026 Fitting with 4 connections
Model Cross piece 90°
Reducing No
Multi-part No
System specific No
Connection 1 Groove
Connection 2 Groove
Connection 3 Groove
Connection 4 Groove
With thermal insulation No
With sealing rings/gaskets No
With buffer stud No
Capped No
LPCB quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
KIWA certified No
Gastec QA mark No
