VSH Shurjoint extra heavy end protection tee

Product Image for VSH Shurjoint extra heavy end protection tee

group: 24EP

The Shurjoint Model 24EP is an extra heavy (Sch. 80) wall thickness tee fitting. It has "EP" cut grooves for use with the XH-70EP model coupling. The 24EP tee is a specially designed tee which can act as a service point for paste backfill systems in the mining industry. The 24EP tee has a shortened C-B length, which improves the removal of paste during the flushing process. The 24EP can be used with the 60EP End Cap which acts as a cover for the branch outlet.
read more
read less

applications

no applications available

segments

no segments available

approvals

no approvals available

item

size

d1

DN1

l1

d2

DN2

l2

d3

DN3

l3

size

168.3 (DN150) black

d1

168.3

DN1

DN150

l1

165

d2

168.3

DN2

DN150

l2

145

d3

168.3

DN3

DN150

l3

165

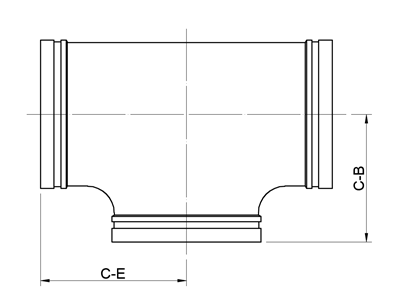

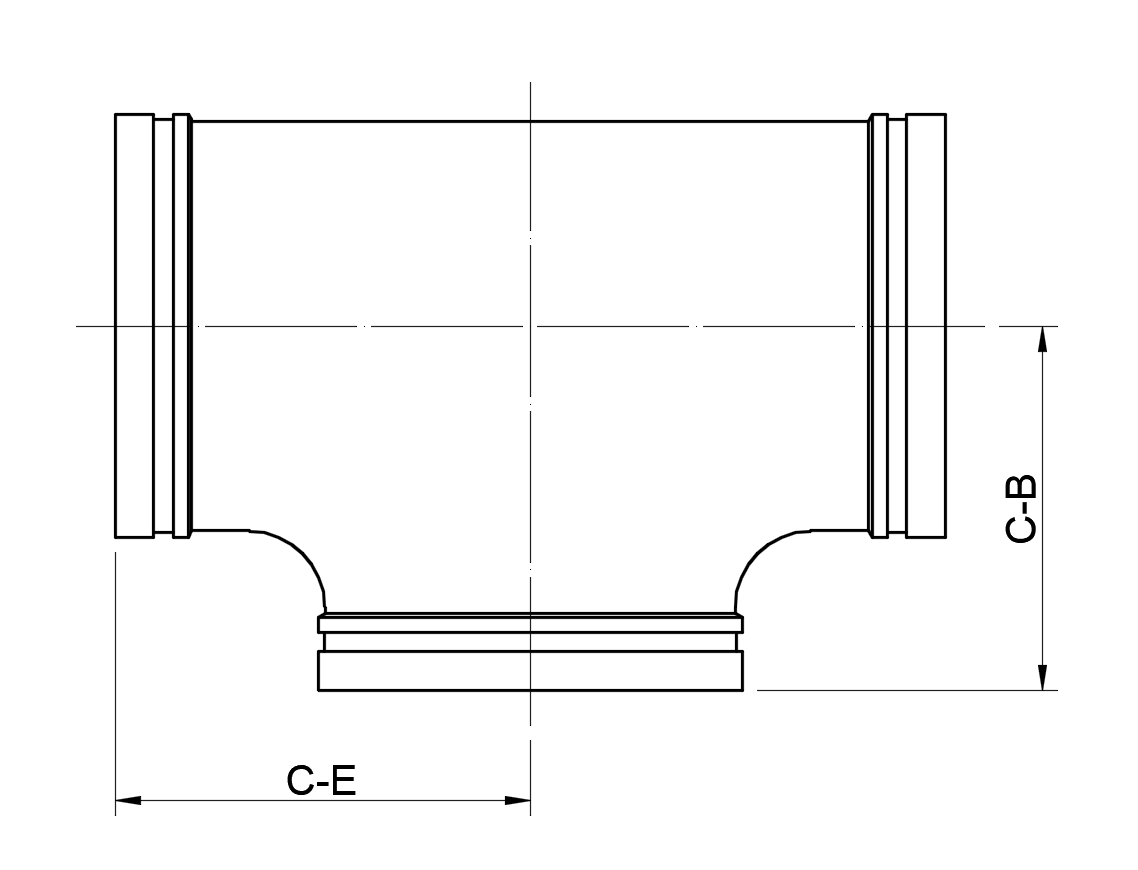

technical drawing for product

characteristics

materials

cast iron (ASTM A536 65-45-12)

finishing

varnished

manufacturer

Shurjoint

shape

T-piece

connection type

groove (fitting)

general

product group

fittings (demountable)

ETIM class

EC003025 Fitting with 3 connections

country of origin

Taiwan

brand

VSH

series

Shurjoint

type

24EP

label

value

label

Material connection 1

value

Cast iron

label

Material quality connection 1

value

ASTM A536 Grade 65-45-12

label

Surface protection connection 1

value

Lacquered

label

Material connection 2

value

Cast iron

label

Material quality connection 2

value

ASTM A536 Grade 65-45-12

label

Surface protection connection 2

value

Lacquered

label

Material connection 3

value

Cast iron

label

Material quality connection 3

value

ASTM A536 Grade 65-45-12

label

Surface protection connection 3

value

Lacquered

label

Model

value

T-piece

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

No

label

Nominal diameter connection 1

value

DN 150

label

Outer pipe diameter connection 1

value

168.3mm

label

Outer pipe diameter connection 1 (imperial)

value

6.63"

label

Connection 1

value

Groove

label

Nominal diameter connection 2

value

DN 150

label

Outer pipe diameter connection 2

value

168.3mm

label

Outer pipe diameter connection 2 (imperial)

value

6.63"

label

Connection 2

value

Groove

label

Nominal diameter connection 3

value

DN 150

label

Outer pipe diameter connection 3

value

168.3mm

label

Outer pipe diameter connection 3 (imperial)

value

6.63"

label

Connection 3

value

Groove

label

Length of connection 1

value

165mm

label

Length of connection 1 (imperial)

value

6.5"

label

Length of connection 2

value

145mm

label

Length of connection 2 (imperial)

value

5.71"

label

Length of connection 3

value

165mm

label

Length of connection 3 (imperial)

value

6.5"

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With thermal insulation

value

No

label

With buffer stud

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
